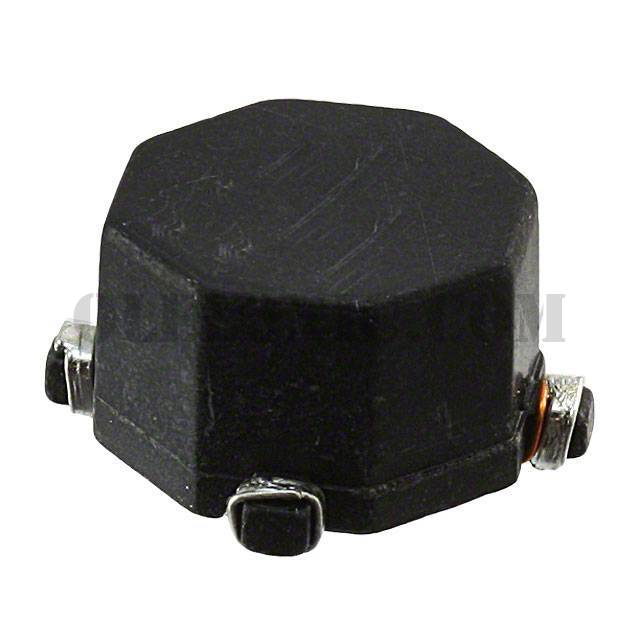

CTX50-2A-R

Part NumberCTX50-2A-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 49.38UH SMD

DatasheetCTX Series ECONO-PAC, OCTA-PAC/PLUS

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 197.5µH Inductance - Connected in Series 49.38µH Inductance - Connected in Parallel 240mOhm Max DC Resistance (DCR) - Parallel 1.28A Nonstandard

To learn about the specification of CTX50-2A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX50-2A-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX50-2A-R.
We are offering CTX50-2A-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX50-2A-R - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

CTX Series ECONO-PAC, OCTA-PAC/PLUS

Standard Package

800

Manufacturer

Eaton - Electronics Division

Series

OCTA-PAC® PLUS

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Number of Coils

Inductance - Connected In Parallel

49.38µH

Inductance - Connected In Series

197.5µH

Tolerance

±25%

Current Rating - Parallel

1.28A

Current Rating - Series

640mA

Current Saturation - Parallel

1.5A

Current Saturation - Series

750mA

DC Resistance (DCR) - Parallel

240mOhm Max

DC Resistance (DCR) - Series

961mOhm Max

Shielding

Unshielded

Ratings

Operating Temperature

-40°C ~ 85°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.450" L x 0.450" W (11.43mm x 11.43mm)

Height

0.235" (5.97mm)
