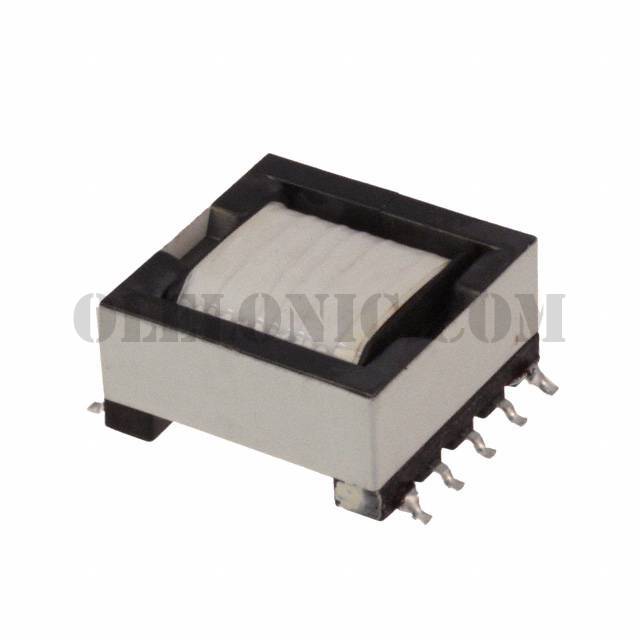

CTX22-15557

Part NumberCTX22-15557

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 1MH 1.3A 470 MOHM SMD

DatasheetCTX22-15557

Package / Case10-SMD, Gull Wing

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1mH Unshielded Toroidal Inductor 1.3A 470mOhm Max 10-SMD, Gull Wing

To learn about the specification of CTX22-15557, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX22-15557 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX22-15557.
We are offering CTX22-15557 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX22-15557 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

CTX22-15557

Standard Package

480

Manufacturer

Eaton - Electronics Division

Series

PFC

Packaging

Bulk

Part Status

Obsolete

Type

Toroidal

Material - Core

Ferrite

Inductance

1mH

Tolerance

Current Rating (Amps)

1.3A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

470mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-20°C ~ 105°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

10-SMD, Gull Wing

Supplier Device Package

10-SMT

Size / Dimension

1.252" L x 1.063" W (31.80mm x 27.00mm)

Height - Seated (Max)

0.516" (13.10mm)
