CTX100-10-52-R

Part NumberCTX100-10-52-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 100UH 17.6A 10.9 MOHM

DatasheetLow Cost Power Inductors

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

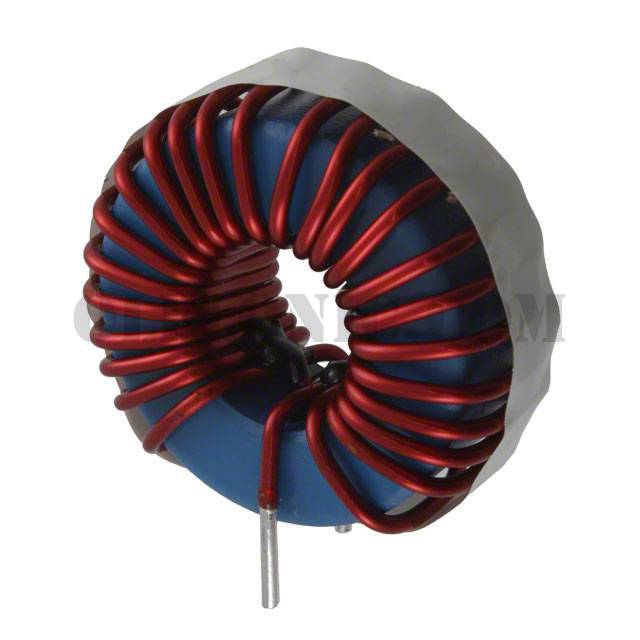

Detailed Description100µH Unshielded Toroidal Inductor 17.6A 10.9mOhm Max Radial, Vertical (Open)

To learn about the specification of CTX100-10-52-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX100-10-52-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX100-10-52-R.
We are offering CTX100-10-52-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX100-10-52-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

Low Cost Power Inductors

Standard Package

1008

Manufacturer

Eaton - Electronics Division

Series

CTX

Packaging

Bulk

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

100µH

Tolerance

±20%

Current Rating (Amps)

17.6A

Current - Saturation

13A

Shielding

Unshielded

DC Resistance (DCR)

10.9mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 75°C

Inductance Frequency - Test

100kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical (Open)

Supplier Device Package

Size / Dimension

2.244" Dia x 1.083" W (57.00mm x 27.50mm)

Height - Seated (Max)
