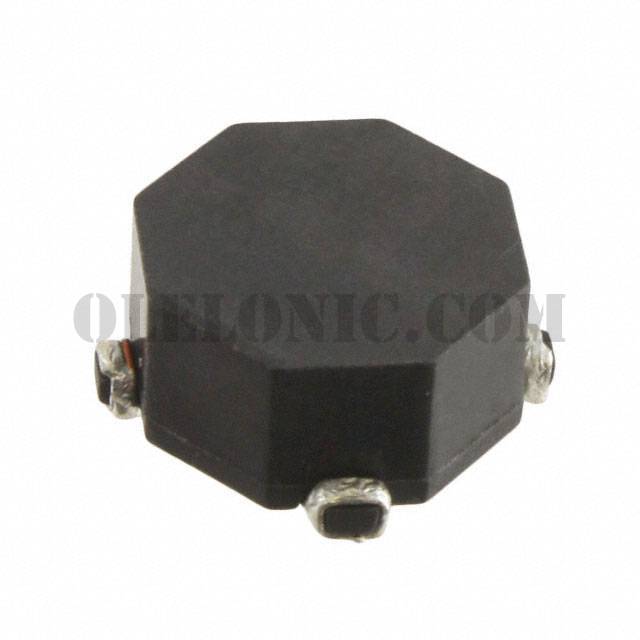

CTX10-4P-R


CTX10-4P-R

Part NumberCTX10-4P-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX10-4P-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesEcono-Pac™
PackagingCut Tape (CT)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel9.88µH
Inductance - Connected In Series39.53µH
Tolerance±20%
Current Rating - Parallel2.5A
Current Rating - Series1.25A
DC Resistance (DCR) - Parallel47mOhm Max
DC Resistance (DCR) - Series187mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.550" L x 0.550" W (13.97mm x 13.97mm)
Height0.250" (6.35mm)
