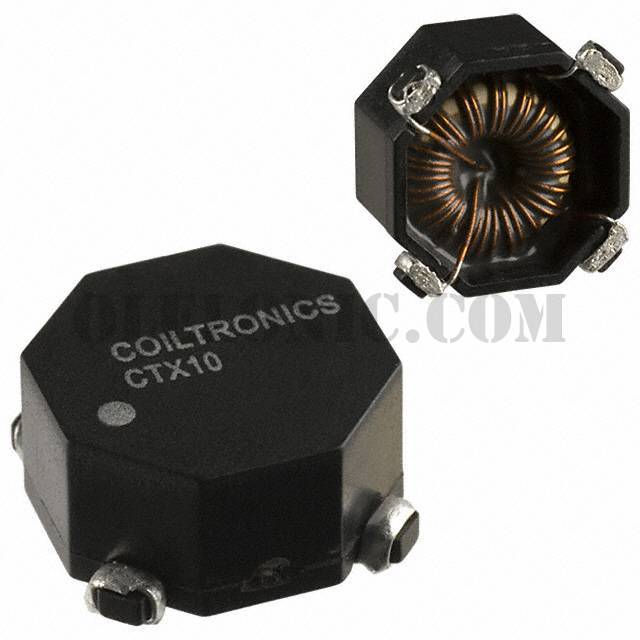

CTX10-3A-R

Part NumberCTX10-3A-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 9.68UH SMD

DatasheetCTX Series ECONO-PAC, OCTA-PAC/PLUS

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 38.7µH Inductance - Connected in Series 9.68µH Inductance - Connected in Parallel 32mOhm Max DC Resistance (DCR) - Parallel 3.64A Nonstandard

To learn about the specification of CTX10-3A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX10-3A-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX10-3A-R.
We are offering CTX10-3A-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX10-3A-R - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

CTX Series ECONO-PAC, OCTA-PAC/PLUS

Standard Package

800

Manufacturer

Eaton - Electronics Division

Series

OCTA-PAC® PLUS

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Number of Coils

Inductance - Connected In Parallel

9.68µH

Inductance - Connected In Series

38.7µH

Tolerance

±25%

Current Rating - Parallel

3.64A

Current Rating - Series

1.82A

Current Saturation - Parallel

Current Saturation - Series

1.5A

DC Resistance (DCR) - Parallel

32mOhm Max

DC Resistance (DCR) - Series

126mOhm Max

Shielding

Unshielded

Ratings

Operating Temperature

-40°C ~ 85°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.550" L x 0.550" W (13.97mm x 13.97mm)

Height

0.190" (4.83mm)
