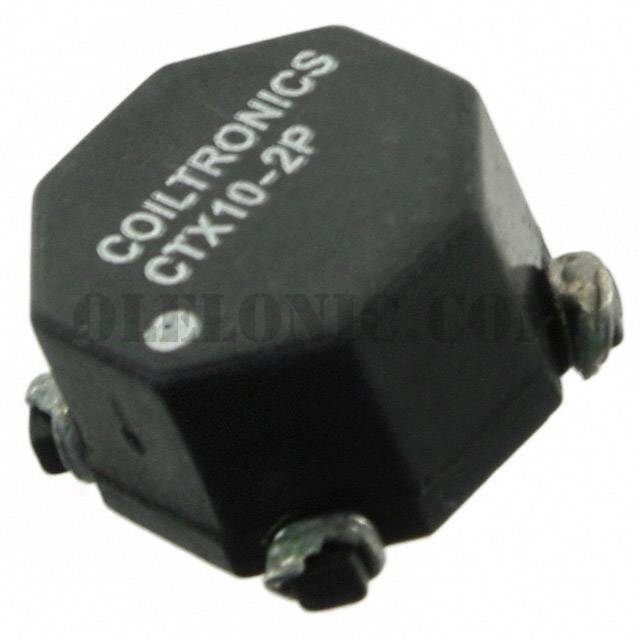

CTX10-2P-R


CTX10-2P-R

Part NumberCTX10-2P-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX10-2P-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package800
ManufacturerEaton - Electronics Division
SeriesEcono-Pac™
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel9.83µH
Inductance - Connected In Series39.3µH
Tolerance±20%
Current Rating - Parallel2.1A
Current Rating - Series1.05A
DC Resistance (DCR) - Parallel45mOhm Max
DC Resistance (DCR) - Series179mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.235" (5.97mm)
