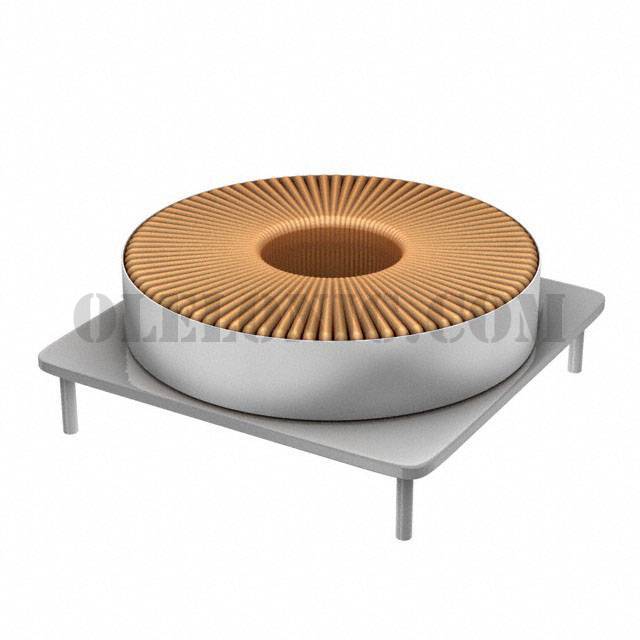

CTX10-2-52M-R

Part NumberCTX10-2-52M-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 10UH 4.7A 18.3 MOHM TH

DatasheetLow Cost Power Inductors

Package / CaseRadial, Horizontal, 4 Leads (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Unshielded Toroidal Inductor 4.7A 18.3mOhm Max Radial, Horizontal, 4 Leads (Open)

To learn about the specification of CTX10-2-52M-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX10-2-52M-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX10-2-52M-R.
We are offering CTX10-2-52M-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX10-2-52M-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

Low Cost Power Inductors

Standard Package

253

Manufacturer

Eaton - Electronics Division

Series

CTX

Packaging

Bulk

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

10µH

Tolerance

±20%

Current Rating (Amps)

4.7A

Current - Saturation

4.5A

Shielding

Unshielded

DC Resistance (DCR)

18.3mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 75°C

Inductance Frequency - Test

100kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal, 4 Leads (Open)

Supplier Device Package

Size / Dimension

0.535" L x 0.449" W (13.60mm x 11.40mm)

Height - Seated (Max)

0.461" (11.70mm)
