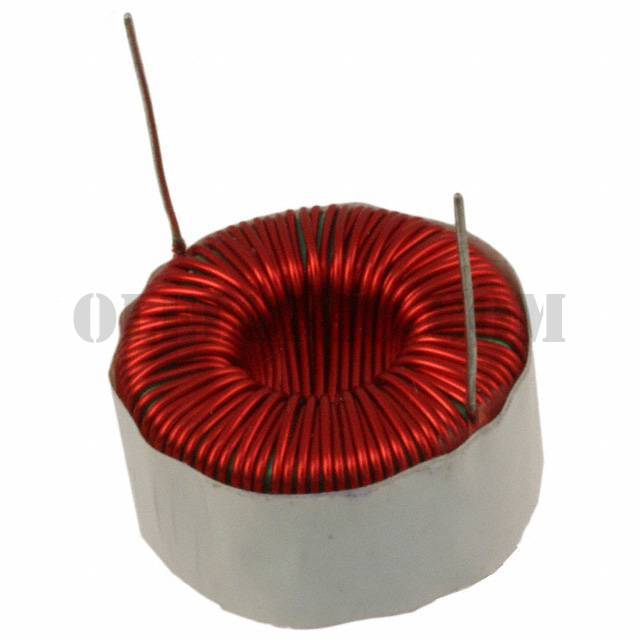

CTX02-12236

Part NumberCTX02-12236

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 500UH 2.6A 200 MOHM TH

DatasheetCTX02-12236

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description500µH Unshielded Toroidal Inductor 2.6A 200mOhm Max Radial, Horizontal (Open)

To learn about the specification of CTX02-12236, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX02-12236 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX02-12236.
We are offering CTX02-12236 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX02-12236 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

CTX02-12236

Standard Package

504

Manufacturer

Eaton - Electronics Division

Series

PFC

Packaging

Bulk

Part Status

Obsolete

Type

Toroidal

Material - Core

Iron Powder

Inductance

500µH

Tolerance

Current Rating (Amps)

2.6A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

200mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-20°C ~ 105°C

Inductance Frequency - Test

100kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal (Open)

Supplier Device Package

Size / Dimension

1.224" Dia (31.08mm)

Height - Seated (Max)

0.750" (19.05mm)
