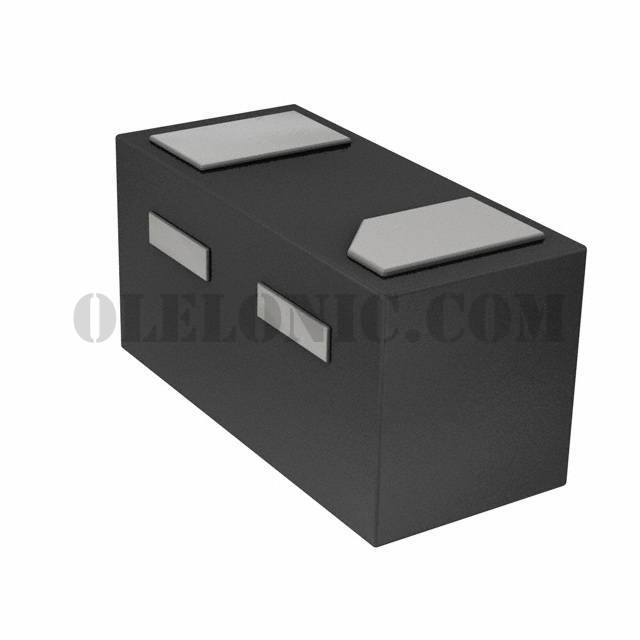

CTLSH01-30L TR

CTLSH01-30L TR

Part NumberCTLSH01-30L TR

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 30V 100MA 2DFN

DatasheetCTLSH01-30L

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 100mA Surface Mount TLM2D3D6

To learn about the specification of CTLSH01-30L TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTLSH01-30L TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTLSH01-30L TR.
We are offering CTLSH01-30L TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTLSH01-30L TR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CTLSH01-30L
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	370mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	7µA @ 10V
Capacitance @ Vr, F	7pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	TLM2D3D6
Operating Temperature - Junction	-65°C ~ 125°C
