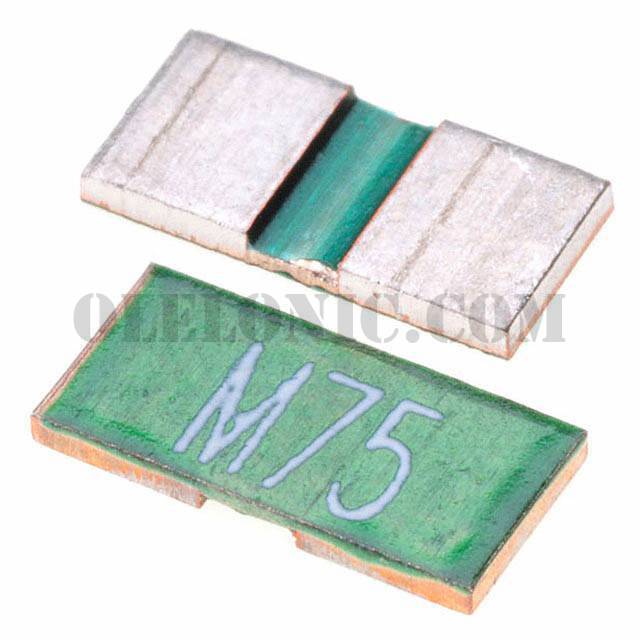

CSR1206-0R004F1


CSR1206-0R004F1

Part NumberCSR1206-0R004F1

Manufacturer

Description

Datasheet

Package / Case1206 (3216 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CSR1206-0R004F1 - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package2000
ManufacturerRiedon
SeriesCSR
PackagingTape & Reel (TR)
Part StatusActive
Resistance4 mOhms
Tolerance±1%
Power (Watts)1W
CompositionMetal Element
FeaturesCurrent Sense, Non-Inductive
Temperature Coefficient±50ppm/°C
Operating Temperature-55°C ~ 170°C
Package / Case1206 (3216 Metric)
Supplier Device Package1206
Size / Dimension0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)0.024" (0.60mm)
Number of Terminations2
Failure Rate-
