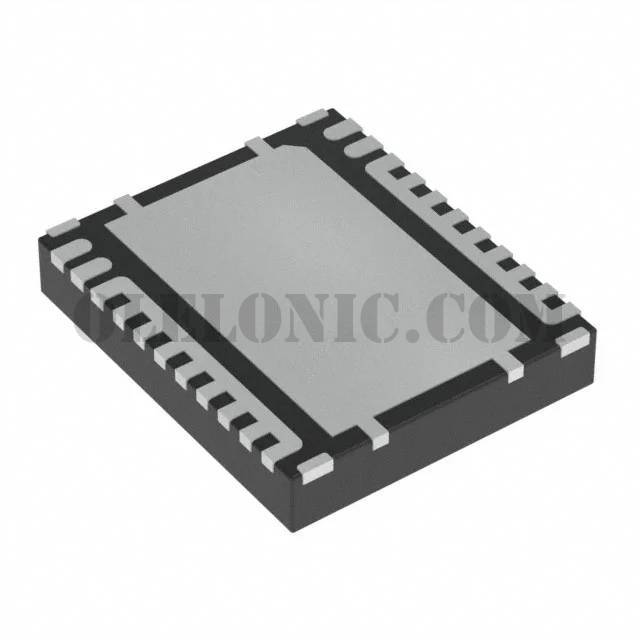

CSD88584Q5DCT

Part NumberCSD88584Q5DCT

ManufacturerTexas Instruments

DescriptionMOSFET 2 N-CH 40V 22-VSON-CLIP

DatasheetCSD88584Q5DC Datasheet

Package / Case22-PowerTFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 40V 12W Surface Mount 22-VSON-CLIP (5x6)

To learn about the specification of CSD88584Q5DCT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD88584Q5DCT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD88584Q5DCT.
We are offering CSD88584Q5DCT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD88584Q5DCT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD88584Q5DC Datasheet
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	0.95mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	88nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	12400pF @ 20V
Power - Max	12W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	22-PowerTFDFN
Supplier Device Package	22-VSON-CLIP (5x6)
