CSD87313DMST

Part NumberCSD87313DMST

ManufacturerTexas Instruments

DescriptionMOSFET 2 N-CHANNEL 30V 8WSON

DatasheetCSD87313DMS Datasheet

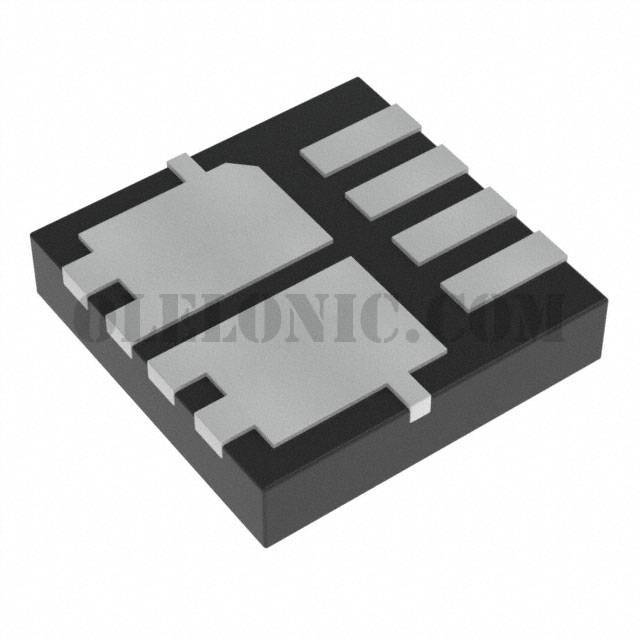

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 30V 2.7W Surface Mount 8-WSON (3.3x3.3)

To learn about the specification of CSD87313DMST, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD87313DMST with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD87313DMST.
We are offering CSD87313DMST for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD87313DMST - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD87313DMS Datasheet
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	28nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	4290pF @ 15V
Power - Max	2.7W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-WSON (3.3x3.3)
