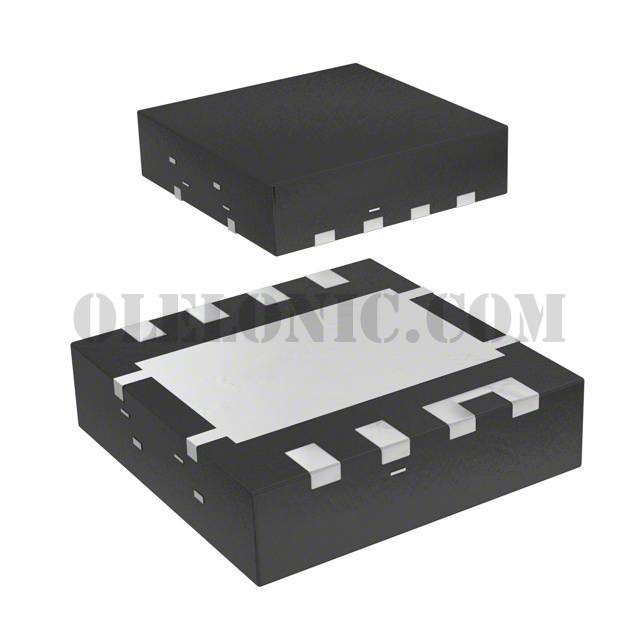

CSD86356Q5DT

Part NumberCSD86356Q5DT

ManufacturerTexas Instruments

DescriptionSYNCHRONOUS BUCK NEXFET POWER BL

DatasheetCSD86356Q5D Datasheet

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 25V 40A (Ta) 12W (Ta) Surface Mount 8-VSON-CLIP (5x6)

To learn about the specification of CSD86356Q5DT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD86356Q5DT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD86356Q5DT.
We are offering CSD86356Q5DT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD86356Q5DT - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

CSD86356Q5D Datasheet

Standard Package

Manufacturer

Texas Instruments

Series

NexFET™

Packaging

Cut Tape (CT)

Part Status

Active

FET Type

2 N-Channel (Half Bridge)

FET Feature

Logic Level Gate, 5V Drive

Drain to Source Voltage (Vdss)

25V

Current - Continuous Drain (Id) @ 25°C

40A (Ta)

Rds On (Max) @ Id, Vgs

4.5mOhm @ 20A, 5V, 0.8mOhm @ 20A, 5V

Vgs(th) (Max) @ Id

1.85V @ 250µA, 1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

7.9nC @ 4.5V, 19.3nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds

1.04nF @ 12.5V, 2.51nF @ 12.5V

Power - Max

12W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-PowerTDFN

Supplier Device Package

8-VSON-CLIP (5x6)
