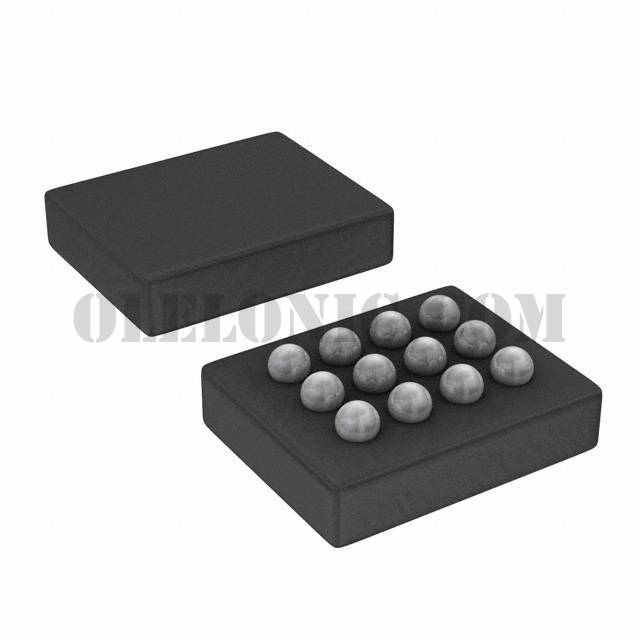

CSD75211W1723

Part NumberCSD75211W1723

ManufacturerTexas Instruments

DescriptionMOSFET 2P-CH 20V 4.5A 12DSBGA

DatasheetCSD75211W1723

Package / Case12-UFBGA, DSBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 4.5A 1.5W Surface Mount 12-DSBGA

To learn about the specification of CSD75211W1723, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD75211W1723 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD75211W1723.
We are offering CSD75211W1723 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD75211W1723 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

CSD75211W1723

Standard Package

Manufacturer

Texas Instruments

Series

NexFET™

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

2 P-Channel (Dual)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

4.5A

Rds On (Max) @ Id, Vgs

40mOhm @ 2A, 4.5V

Vgs(th) (Max) @ Id

1.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

5.9nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds

600pF @ 10V

Power - Max

1.5W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

12-UFBGA, DSBGA

Supplier Device Package

12-DSBGA

Base Part Number

CSD75211
