CSD19533KCS

CSD19533KCS

Part NumberCSD19533KCS

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 100V 86A TO220-3

DatasheetCSD19533KCS

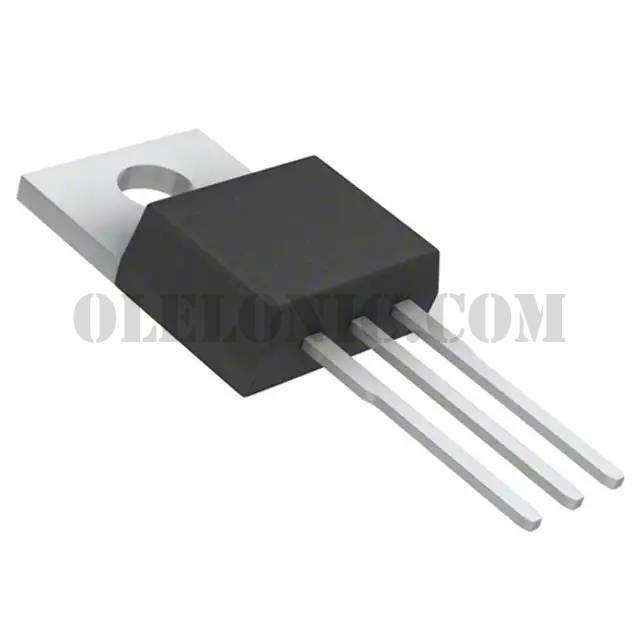

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 100A (Ta) 188W (Tc) Through Hole TO-220-3

To learn about the specification of CSD19533KCS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD19533KCS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD19533KCS.
We are offering CSD19533KCS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD19533KCS - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD19533KCS
Standard Package	50
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	10.5mOhm @ 55A, 10V
Vgs(th) (Max) @ Id	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	35nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2670pF @ 50V
FET Feature	-
Power Dissipation (Max)	188W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
Base Part Number	CSD19533
