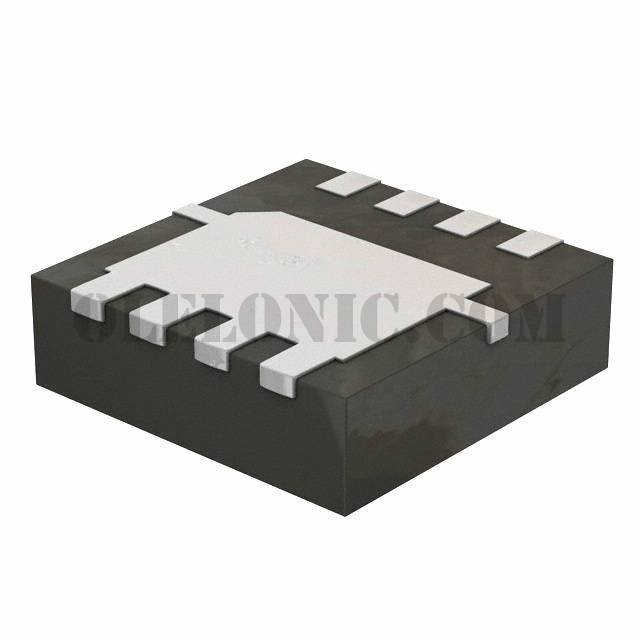

CSD17309Q3

CSD17309Q3

Part NumberCSD17309Q3

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 30V 60A 8SON

DatasheetCSD17309Q3

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 20A (Ta), 60A (Tc) 2.8W (Ta) Surface Mount 8-VSON-CLIP (3.3x3.3)

To learn about the specification of CSD17309Q3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD17309Q3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD17309Q3.
We are offering CSD17309Q3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD17309Q3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD17309Q3
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	5.4mOhm @ 18A, 8V
Vgs(th) (Max) @ Id	1.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 4.5V
Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1440pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (3.3x3.3)
Package / Case	8-PowerTDFN
