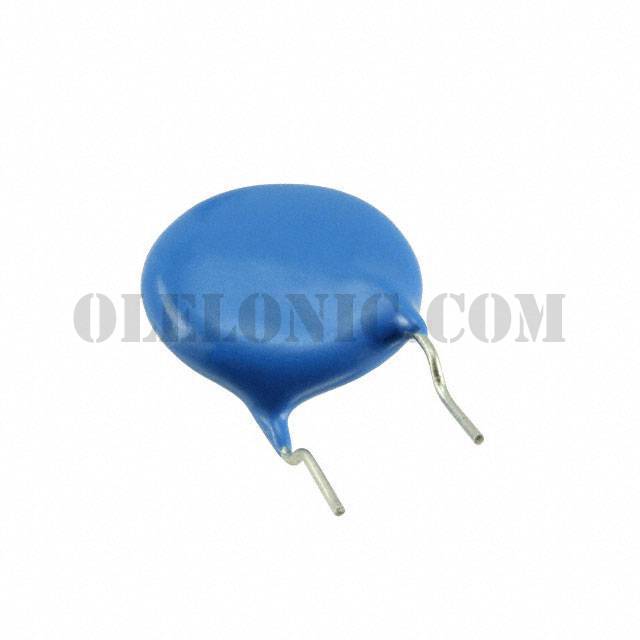

Categories	Capacitors / Ceramic Capacitors
Datasheet	CS45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CS45
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±20%
Voltage - Rated	440VAC
Temperature Coefficient	F
Operating Temperature	-25°C ~ 125°C
Features	High Voltage
Ratings	X1, Y2
Applications	Safety
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.571" Dia (14.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

CS45-E2GA222M-GKA	TDK Corporation, 2200pF ±20% 440VAC Ceramic Capacitor E Radial, Disc, CS45	View
CS45-E2GA222M-VKA	TDK Corporation, 2200pF ±20% 440VAC Ceramic Capacitor E Radial, Disc, CS45	View
CS45-E2GA102M-VKA	TDK Corporation, 1000pF ±20% 440VAC Ceramic Capacitor E Radial, Disc, CS45	View
CS45-F2GA103M-GKA	TDK Corporation, 10000pF ±20% 440VAC Ceramic Capacitor F Radial, Disc, CS45	View
CS45-F2GA103M-NKA	TDK Corporation, 10000pF ±20% 440VAC Ceramic Capacitor F Radial, Disc, CS45	View
CS45-E2GA222M-NKA	TDK Corporation, 2200pF ±20% 440VAC Ceramic Capacitor E Radial, Disc, CS45	View
CS45-B2GA101K-NKA	TDK Corporation, 100pF ±10% 440VAC Ceramic Capacitor B Radial, Disc, CS45	View
CS45-F2GA103M-VKA	TDK Corporation, 10000pF ±20% 440VAC Ceramic Capacitor F Radial, Disc, CS45	View
CS45-B2GA101K-VKA	TDK Corporation, 100pF ±10% 440VAC Ceramic Capacitor B Radial, Disc, CS45	View
CS45-B2GA471K-VKA	TDK Corporation, 470pF ±10% 440VAC Ceramic Capacitor B Radial, Disc, CS45	View
CS45-E2GA102M-GKA	TDK Corporation, 1000pF ±20% 440VAC Ceramic Capacitor E Radial, Disc, CS45	View
CS45-E2GA332M-NKA	TDK Corporation, 3300pF ±20% 440VAC Ceramic Capacitor E Radial, Disc, CS45	View

CS45-F2GA103M-NKA

Part NumberCS45-F2GA103M-NKA
