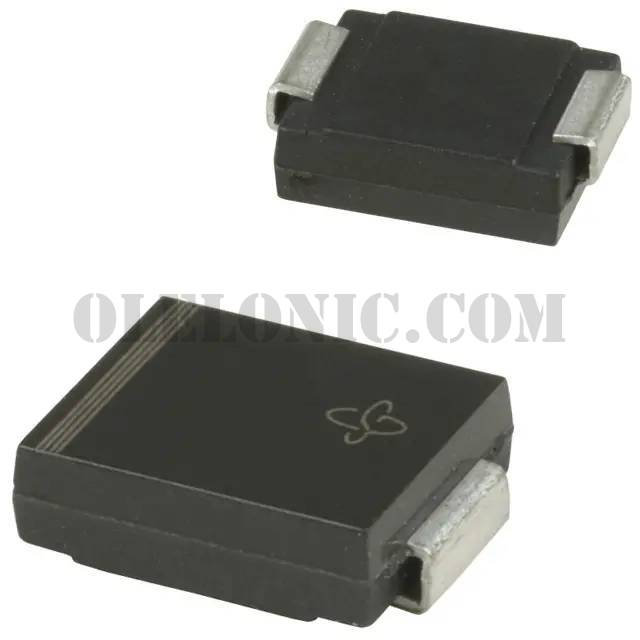

CS3M-E3/I

CS3M-E3/I

Part NumberCS3M-E3/I

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GPP 1000V 3.0A DO-214AB

DatasheetCS3D, G, J, K, M

Package / CaseDO-214AB, SMC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 2A Surface Mount DO-214AB (SMC)

To learn about the specification of CS3M-E3/I, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CS3M-E3/I with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CS3M-E3/I.
We are offering CS3M-E3/I for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CS3M-E3/I - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CS3D, G, J, K, M
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.15V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2.8µs
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	26pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
Operating Temperature - Junction	-55°C ~ 150°C
