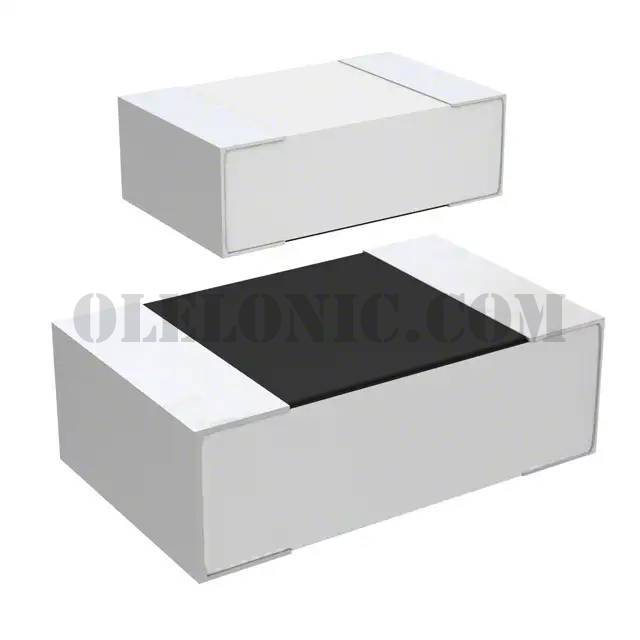

CRG0805F56K


CRG0805F56K

Part NumberCRG0805F56K

Manufacturer

Description

Datasheet

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CRG0805F56K - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package5000
ManufacturerTE Connectivity Passive Product
SeriesCRG, Neohm
PackagingTape & Reel (TR)
Part StatusActive
Resistance56 kOhms
Tolerance±1%
Power (Watts)0.125W, 1/8W
CompositionThick Film
Features-
Temperature Coefficient±100ppm/°C
Operating Temperature-55°C ~ 155°C
Package / Case0805 (2012 Metric)
Supplier Device Package0805
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)0.026" (0.65mm)
Number of Terminations2
Failure Rate-
