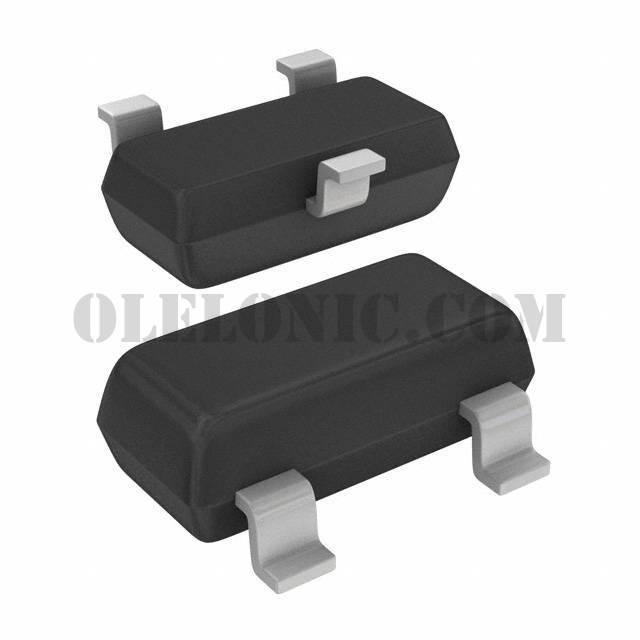

CPH3140-TL-E

CPH3140-TL-E

Part NumberCPH3140-TL-E

ManufacturerON Semiconductor

DescriptionTRANS PNP 100V 1A CPH3

DatasheetCPH3140,3240

Package / CaseSC-96

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 100V 1A 120MHz 900mW Surface Mount 3-CPH

To learn about the specification of CPH3140-TL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPH3140-TL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPH3140-TL-E.
We are offering CPH3140-TL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPH3140-TL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	CPH3140,3240
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	600mV @ 40mA, 400mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	140 @ 100mA, 5V
Power - Max	900mW
Frequency - Transition	120MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-96
Supplier Device Package	3-CPH
