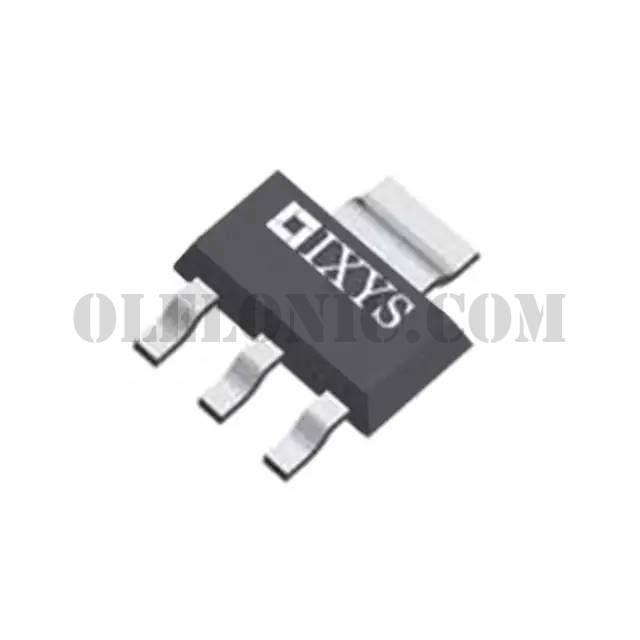

CPC3960ZTR

CPC3960ZTR

Part NumberCPC3960ZTR

ManufacturerIXYS Integrated Circuits Division

DescriptionMOSFET N-CH 600V SOT-223

DatasheetCPC3960

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 1.8W (Ta) Surface Mount SOT-223

To learn about the specification of CPC3960ZTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPC3960ZTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPC3960ZTR.
We are offering CPC3960ZTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPC3960ZTR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CPC3960
Standard Package	1
Manufacturer	IXYS Integrated Circuits Division
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	44Ohm @ 100mA, 0V
Vgs(th) (Max) @ Id	-
Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	100pF @ 25V
FET Feature	Depletion Mode
Power Dissipation (Max)	1.8W (Ta)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
