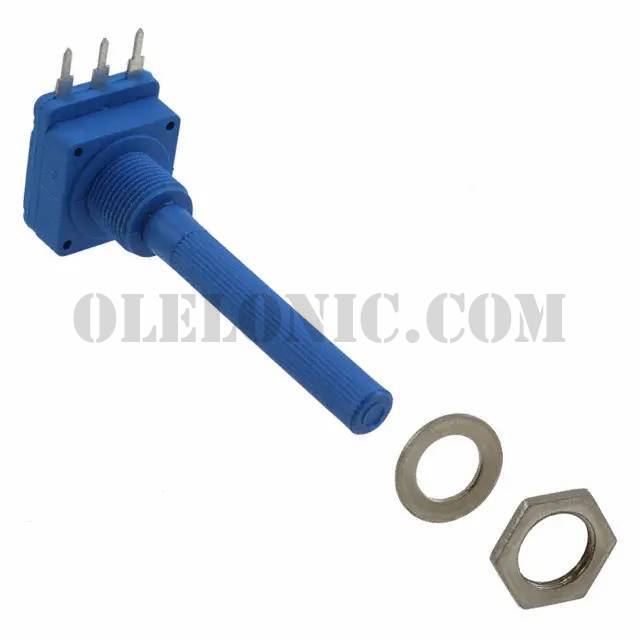

CP16SH10IP06103F

Part NumberCP16SH10IP06103F

ManufacturerTE Connectivity Passive Product

DescriptionPOT 10K OHM 1/5W CARBON LINEAR

DatasheetCP16 Series Drawing

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Carbon 0.2W, 1/5W PC Pins

To learn about the specification of CP16SH10IP06103F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CP16SH10IP06103F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CP16SH10IP06103F.
We are offering CP16SH10IP06103F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CP16SH10IP06103F - Product Attributes

Categories

Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats

Datasheet

CP16 Series Drawing

Standard Package

1000

Manufacturer

TE Connectivity Passive Product

Series

CP16, Citec

Packaging

Bulk

Part Status

Obsolete

Resistance (Ohms)

10k

Tolerance

±20%

Power (Watts)

0.2W, 1/5W

Built in Switch

None

Number of Turns

Taper

Linear

Number of Gangs

Adjustment Type

Side Adjustment

Temperature Coefficient

±300ppm/°C

Rotation

300°

Resistive Material

Carbon

Termination Style

PC Pins

Actuator Type

Knurled

Actuator Length

1.772" (45.00mm)

Actuator Diameter

0.236" (6.00mm)

Bushing Thread

M10 x 0.75

Mounting Type

Panel Mount

Size - Body

Rectangular - 0.807" x 0.630" Face x 0.815" H (18.00mm x 16.00mm x 20.50mm)
