CMXSH-3 TR

Part NumberCMXSH-3 TR

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 30V 100MA SOT26

DatasheetCMXSH-3

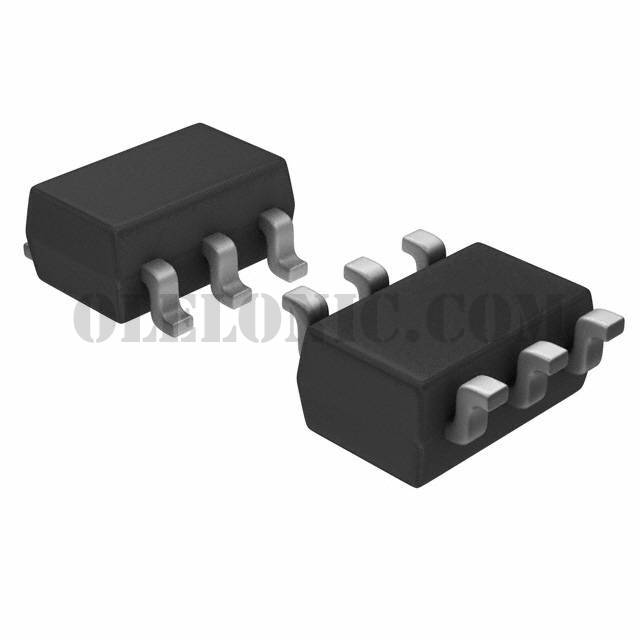

Package / CaseSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 3 Independent Schottky 30V 100mA Surface Mount SOT-23-6

To learn about the specification of CMXSH-3 TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMXSH-3 TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMXSH-3 TR.
We are offering CMXSH-3 TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMXSH-3 TR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	CMXSH-3
Standard Package	3000
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	3 Independent
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	100mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	500nA @ 25V
Operating Temperature - Junction	-65°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-26
