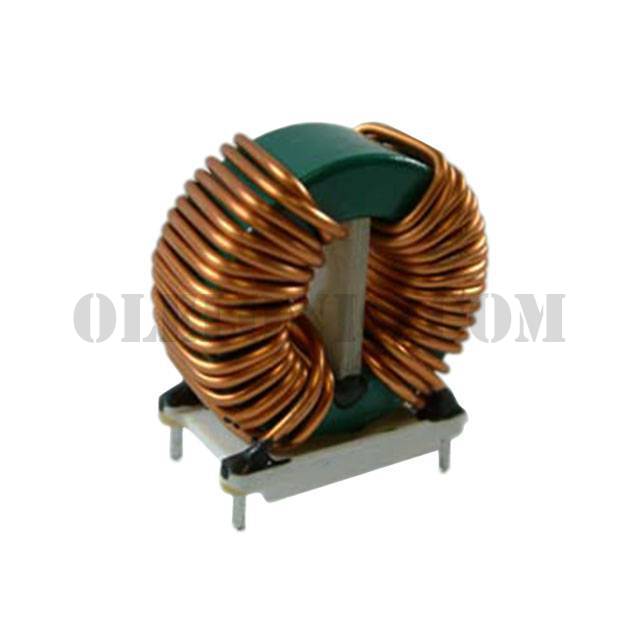

CMT-8119-B

Part NumberCMT-8119-B

ManufacturerTriad Magnetics

DescriptionCMC 4MH 14.5A 2LN TH

DatasheetCMT-8119

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4mH @ 1kHz 2 Line Common Mode Choke Through Hole 14.5A DCR 12mOhm

To learn about the specification of CMT-8119-B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT-8119-B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT-8119-B.
We are offering CMT-8119-B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMT-8119-B - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CMT-8119

Standard Package

Manufacturer

Triad Magnetics

Series

CMT

Packaging

Bulk

Part Status

Active

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

4mH @ 1kHz

Current Rating (Max)

14.5A

DC Resistance (DCR) (Max)

12mOhm

Voltage Rating - DC

Voltage Rating - AC

250V

Operating Temperature

-55°C ~ 105°C

Ratings

Approvals

CSA, IEC, UL, VDE

Features

ESD

Mounting Type

Through Hole

Size / Dimension

1.700" L x 0.900" W (43.18mm x 22.86mm)

Height (Max)

1.650" (41.91mm)

Package / Case

Vertical, 4 PC Pin
