CMSD2005S TR


CMSD2005S TR

Part NumberCMSD2005S TR

Manufacturer

Description

Datasheet

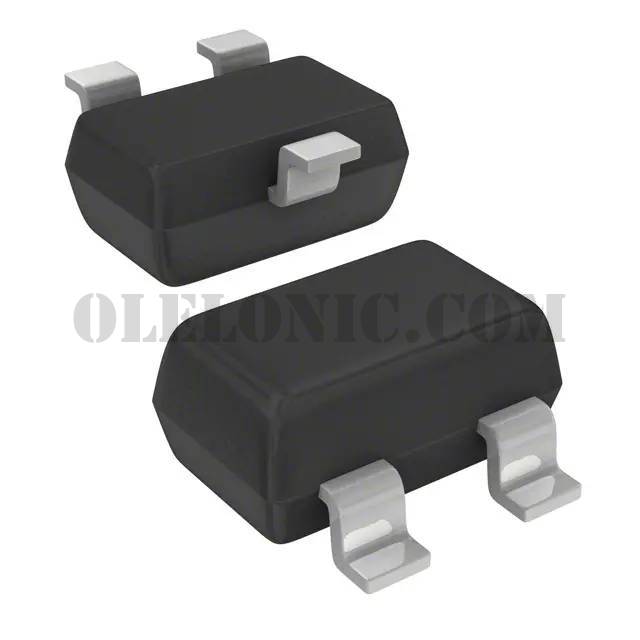

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CMSD2005S TR - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet
Standard Package3000
ManufacturerCentral Semiconductor Corp
Series-
PackagingTape & Reel (TR)
Part StatusActive
Diode Configuration1 Pair Series Connection
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)300V
Current - Average Rectified (Io) (per Diode)225mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25V @ 20A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)50ns
Current - Reverse Leakage @ Vr100nA @ 280V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
