Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CMMR1U Series
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.7V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	100ns
Current - Reverse Leakage @ Vr	1µA @ 800V
Capacitance @ Vr, F	9pF @ 4V, 1MHz
Mounting Type	Surface Mount

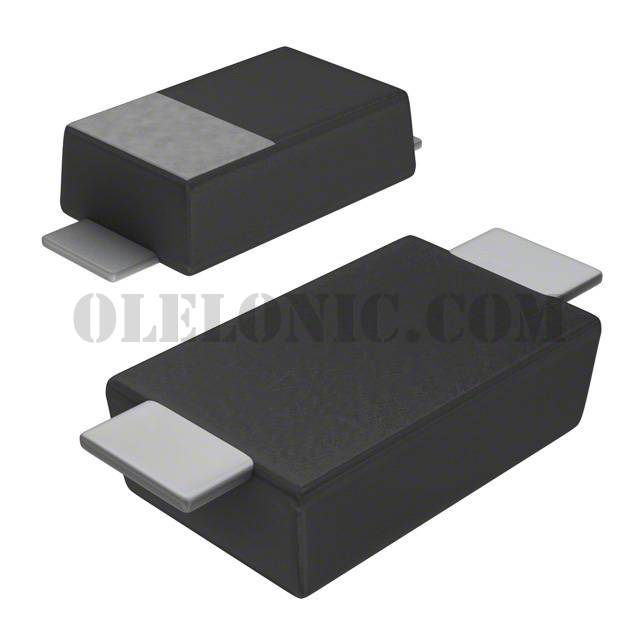

Package / Case	SOD-123F
Supplier Device Package	SOD-123F
Operating Temperature - Junction	-65°C ~ 150°C
