CMLDM8120G TR

CMLDM8120G TR

Part NumberCMLDM8120G TR

ManufacturerCentral Semiconductor Corp

DescriptionMOSFET P-CH 20V 0.86A SOT563

DatasheetCMLDM8120(G)

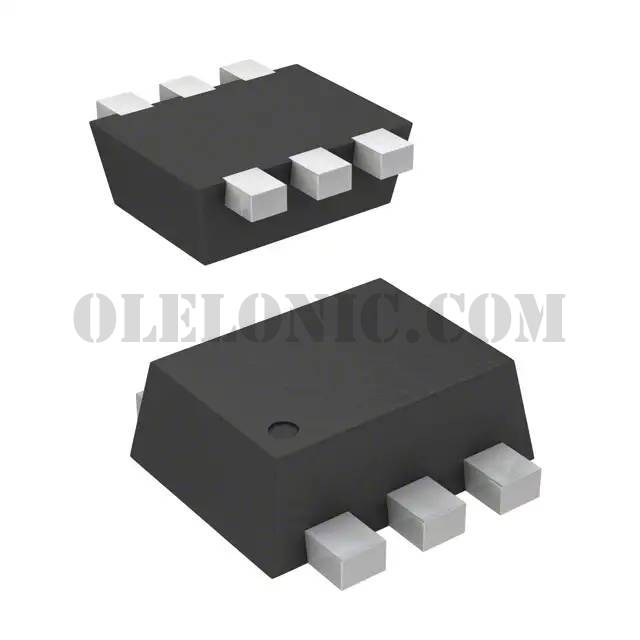

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 860mA (Ta) 350mW (Ta) Surface Mount SOT-563

To learn about the specification of CMLDM8120G TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMLDM8120G TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMLDM8120G TR.
We are offering CMLDM8120G TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMLDM8120G TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CMLDM8120(G)
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	150mOhm @ 950mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.56nC @ 4.5V
Vgs (Max)	8V
Input Capacitance (Ciss) (Max) @ Vds	200pF @ 16V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-563
Package / Case	SOT-563, SOT-666
