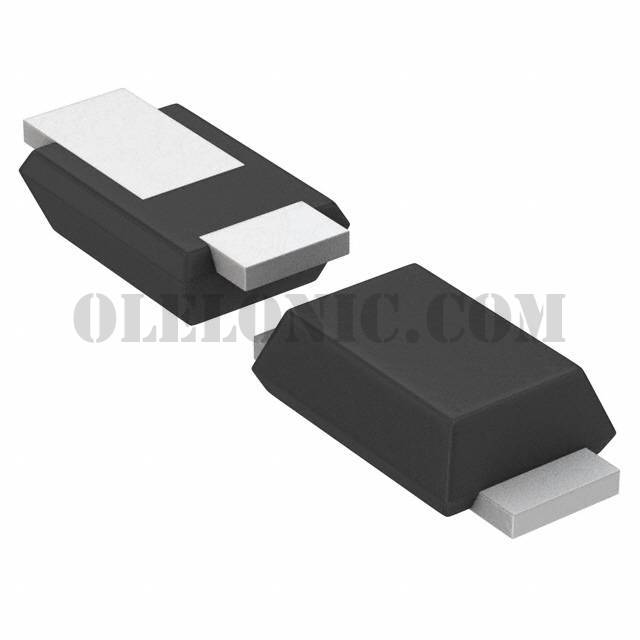

CMIDSH1-3 TR

CMIDSH1-3 TR

Part NumberCMIDSH1-3 TR

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 30V 1A SOD323F

DatasheetCMIDSH1-3,4,6

Package / CaseSC-90, SOD-323F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 1A Surface Mount SOD-323FL

To learn about the specification of CMIDSH1-3 TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMIDSH1-3 TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMIDSH1-3 TR.
We are offering CMIDSH1-3 TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMIDSH1-3 TR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CMIDSH1-3,4,6
Standard Package	3000
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	520mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	100µA @ 30V
Capacitance @ Vr, F	70pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SOD-323FL
Operating Temperature - Junction	-65°C ~ 150°C
