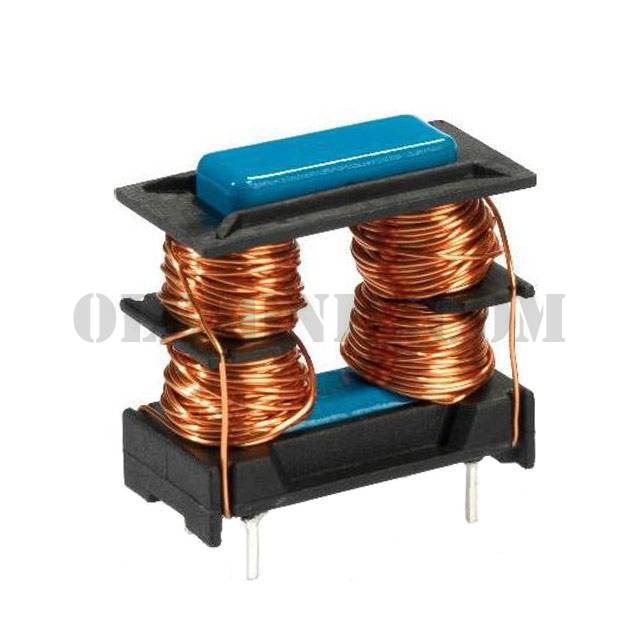

CMF23V-103231-B

Part NumberCMF23V-103231-B

ManufacturerTriad Magnetics

DescriptionCMC 10MH 2.3A 2LN TH

DatasheetCMF23V-103231 Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10mH @ 10kHz 2 Line Common Mode Choke Through Hole 2.3A DCR 206mOhm

To learn about the specification of CMF23V-103231-B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMF23V-103231-B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMF23V-103231-B.
We are offering CMF23V-103231-B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMF23V-103231-B - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	CMF23V-103231 Datasheet
Standard Package	1
Manufacturer	Triad Magnetics
Series	CMF
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	10mH @ 10kHz
Current Rating (Max)	2.3A
DC Resistance (DCR) (Max)	206mOhm
Voltage Rating - DC	-
Voltage Rating - AC	300V
Operating Temperature	-40°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max)	1.063" (27.00mm)
Package / Case	Vertical, 4 PC Pin
