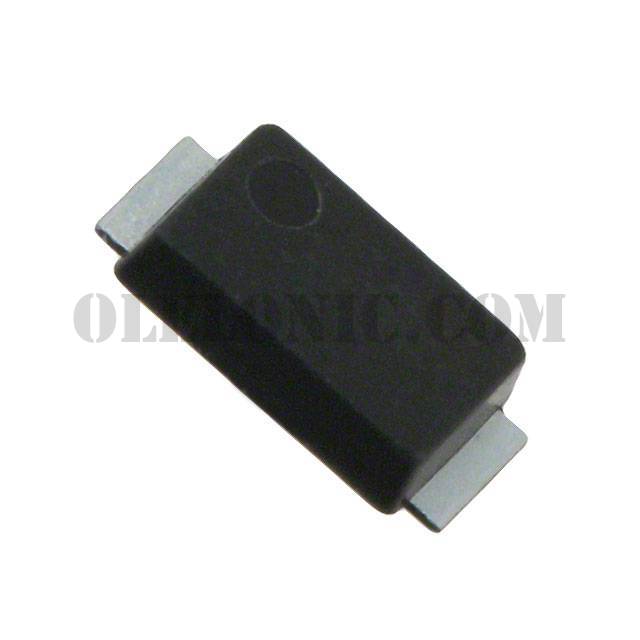

CMF04(TE12L,Q,M)

CMF04(TE12L,Q,M)

Part NumberCMF04(TE12L,Q,M)

ManufacturerToshiba Semiconductor and Storage

DescriptionDIODE GEN PURP 800V 500MA MFLAT

DatasheetCMF04

Package / CaseSOD-128

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 800V 500mA Surface Mount M-FLAT (2.4x3.8)

To learn about the specification of CMF04(TE12L,Q,M), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMF04(TE12L,Q,M) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMF04(TE12L,Q,M).
We are offering CMF04(TE12L,Q,M) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMF04(TE12L,Q,M) - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CMF04
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	2.5V @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	100ns
Current - Reverse Leakage @ Vr	50µA @ 800V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	SOD-128
Supplier Device Package	M-FLAT (2.4x3.8)
Operating Temperature - Junction	-40°C ~ 150°C
Base Part Number	CMF04
