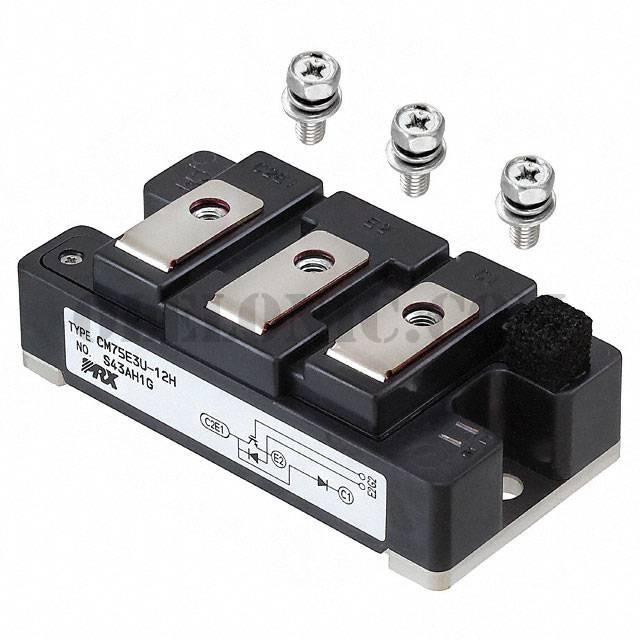

CM75E3U-12H

Part NumberCM75E3U-12H

ManufacturerPowerex Inc.

DescriptionIGBT MOD CHOP 600V 75A U SER

DatasheetCM75E3U-12H

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Single 600V 75A 310W Chassis Mount Module

To learn about the specification of CM75E3U-12H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM75E3U-12H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM75E3U-12H.
We are offering CM75E3U-12H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM75E3U-12H - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

CM75E3U-12H

Standard Package

Manufacturer

Powerex Inc.

Series

IGBTMOD™

Part Status

Obsolete

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

75A

Power - Max

310W

Vce(on) (Max) @ Vge, Ic

3V @ 15V, 75A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

6.6nF @ 10V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
