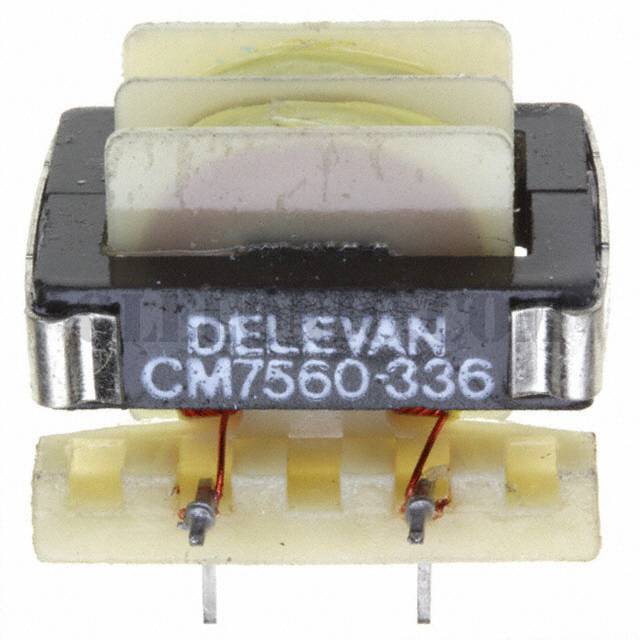

CM7560-336

Part NumberCM7560-336

ManufacturerAPI Delevan Inc.

DescriptionCMC 33MH 440MA 2LN TH

DatasheetCM7560(R) Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description33mH @ 1kHz 2 Line Common Mode Choke Through Hole 440mA DCR 2.2Ohm

To learn about the specification of CM7560-336, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM7560-336 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM7560-336.
We are offering CM7560-336 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM7560-336 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CM7560(R) Series

Standard Package

Manufacturer

API Delevan Inc.

Series

CM7560

Packaging

Bulk

Part Status

Active

Filter Type

Number of Lines

Inductance @ Frequency

33mH @ 1kHz

Current Rating (Max)

440mA

DC Resistance (DCR) (Max)

2.2Ohm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-55°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

1.071" L x 0.858" W (27.20mm x 21.80mm)

Height (Max)

0.861" (21.86mm)

Package / Case

Vertical, 4 PC Pin
