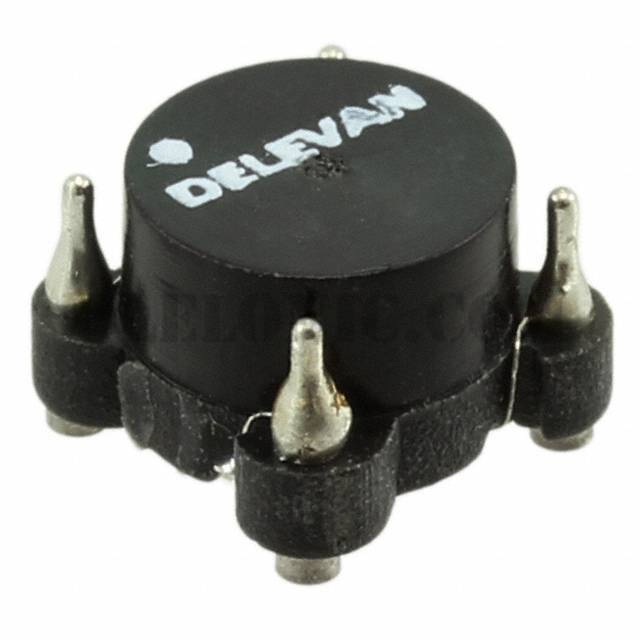

CM6149R-225

Part NumberCM6149R-225

ManufacturerAPI Delevan Inc.

DescriptionCMC 2.2MH 180MA 2LN SMD

DatasheetCM6149(R) Series

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2mH @ 10kHz 2 Line Common Mode Choke Surface Mount 180mA DCR 750mOhm

To learn about the specification of CM6149R-225, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM6149R-225 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM6149R-225.
We are offering CM6149R-225 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM6149R-225 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CM6149(R) Series

Standard Package

100

Manufacturer

API Delevan Inc.

Series

CM6149R

Packaging

Bulk

Part Status

Active

Filter Type

Number of Lines

Inductance @ Frequency

2.2mH @ 10kHz

Current Rating (Max)

180mA

DC Resistance (DCR) (Max)

750mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-55°C ~ 105°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.285" L x 0.285" W (7.24mm x 7.24mm)

Height (Max)

0.210" (5.33mm)

Package / Case

Horizontal, 4 PC Pad
