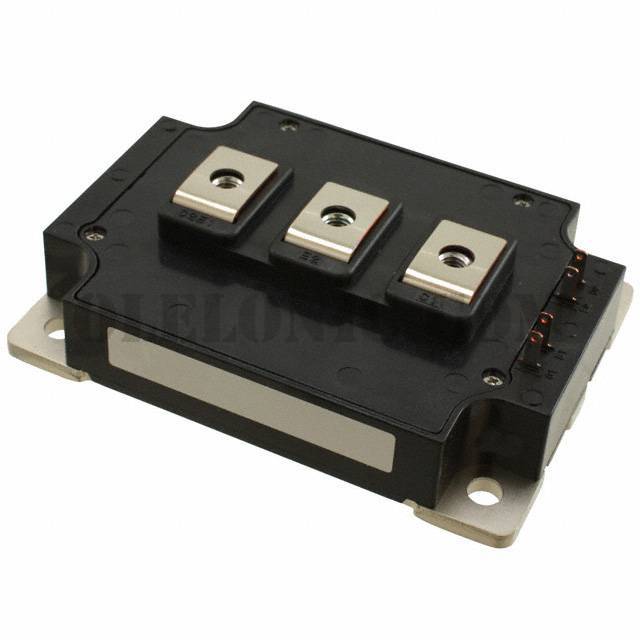

CM450DY-24S

Part NumberCM450DY-24S

ManufacturerPowerex Inc.

DescriptionIGBT MOD DUAL 1200V 410A NX SER

DatasheetCM450DY-24S

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Half Bridge 1200V 410A 3330W Chassis Mount Module

To learn about the specification of CM450DY-24S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM450DY-24S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM450DY-24S.
We are offering CM450DY-24S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM450DY-24S - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

CM450DY-24S

Standard Package

Manufacturer

Powerex Inc.

Series

IGBTMOD™

Part Status

Discontinued at Digi-Key

IGBT Type

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

410A

Power - Max

3330W

Vce(on) (Max) @ Vge, Ic

2.25V @ 15V, 450A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

45nF @ 10V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
