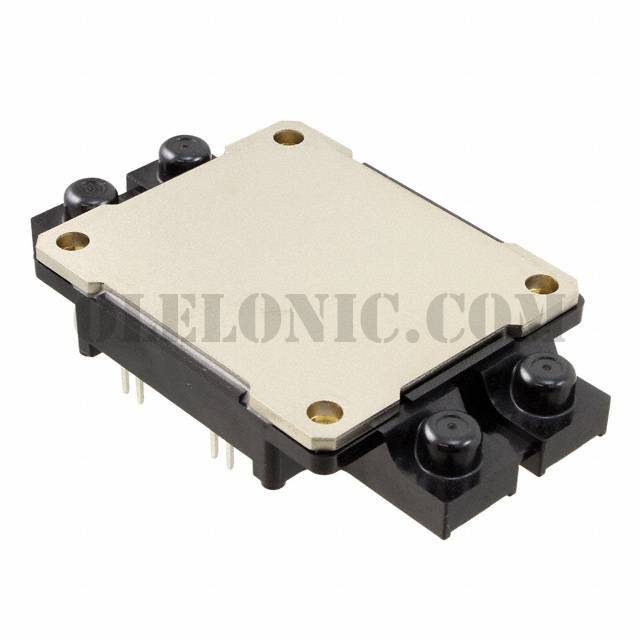

CM300EXS-24S

Part NumberCM300EXS-24S

ManufacturerPowerex Inc.

DescriptionIGBT 1200V 300A 2270W MODULE

DatasheetCM300EXS-24S

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Single 1200V 300A 2270W Module

To learn about the specification of CM300EXS-24S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM300EXS-24S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM300EXS-24S.
We are offering CM300EXS-24S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM300EXS-24S - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

CM300EXS-24S

Standard Package

Manufacturer

Powerex Inc.

Series

Part Status

Discontinued at Digi-Key

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

300A

Power - Max

2270W

Vce(on) (Max) @ Vge, Ic

2.25V @ 15V, 300A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

30nF @ 10V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 150°C (TJ)

Package / Case

Module

Supplier Device Package

Module
