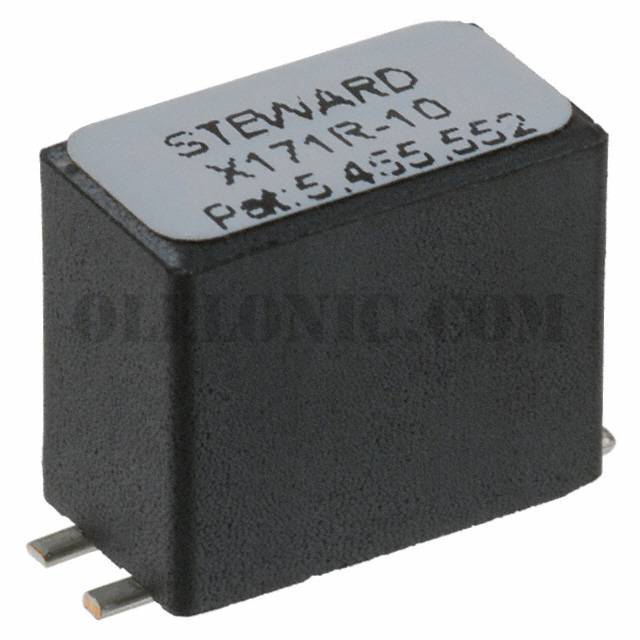

CM2545X171R-10
CM2545X171R-10
Part Number CM2545X171R-10 Description CMC 10A 2LN 170 OHM SMD Package / Case Vertical, 4 Flat LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 170 Ohms @ 100MHz 10A DCR 10mOhm
To learn about the specification of CM2545X171R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM2545X171R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM2545X171R-10.
We are offering CM2545X171R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM2545X171R-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM2545X171R-10 Drawing Standard Package 400 Manufacturer Laird-Signal Integrity Products Series CM Packaging Tape & Reel (TR) Part Status Active Filter Type Power Line Number of Lines 2 Impedance @ Frequency 170 Ohms @ 100MHz Current Rating (Max) 10A DC Resistance (DCR) (Max) 10mOhm Voltage Rating - DC 140V Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.448" L x 0.248" W (11.38mm x 6.30mm) Height (Max) 0.400" (10.16mm) Package / Case Vertical, 4 Flat Lead
