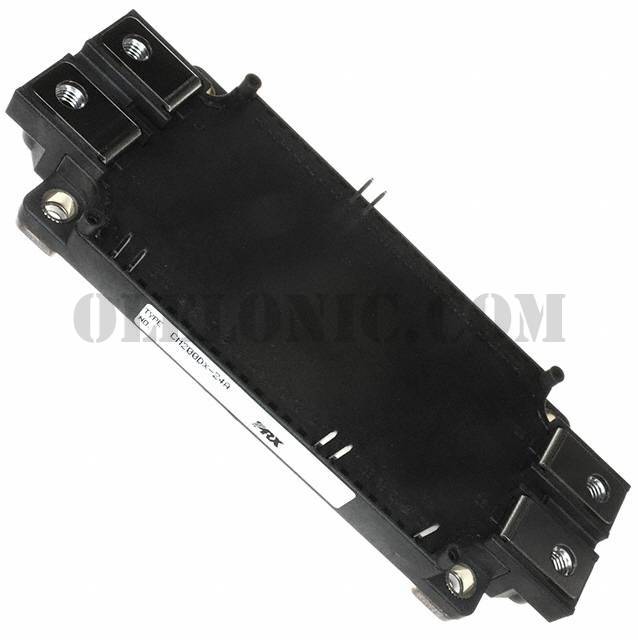

CM200DX-24A

Part NumberCM200DX-24A

ManufacturerPowerex Inc.

DescriptionIGBT MOD DUAL 1200V 200A NX SER

DatasheetCM200DX-24A

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Half Bridge 1200V 200A 1250W Chassis Mount Module

To learn about the specification of CM200DX-24A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM200DX-24A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM200DX-24A.
We are offering CM200DX-24A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM200DX-24A - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

CM200DX-24A

Standard Package

Manufacturer

Powerex Inc.

Series

IGBTMOD™

Part Status

Obsolete

IGBT Type

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

200A

Power - Max

1250W

Vce(on) (Max) @ Vge, Ic

2.6V @ 15V, 200A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

35nF @ 10V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
