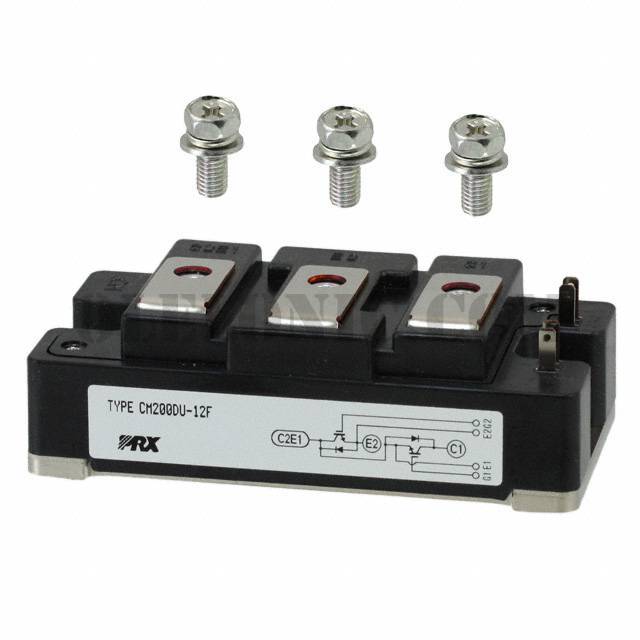

CM200DU-12F

Part NumberCM200DU-12F

ManufacturerPowerex Inc.

DescriptionIGBT MOD DUAL 600V 200A F SER

DatasheetCM200DU-12F

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Half Bridge 600V 200A 590W Chassis Mount Module

To learn about the specification of CM200DU-12F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM200DU-12F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM200DU-12F.
We are offering CM200DU-12F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM200DU-12F - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

CM200DU-12F

Standard Package

Manufacturer

Powerex Inc.

Series

IGBTMOD™

Part Status

Discontinued at Digi-Key

IGBT Type

Trench

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

200A

Power - Max

590W

Vce(on) (Max) @ Vge, Ic

2.2V @ 15V, 200A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

54nF @ 10V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
