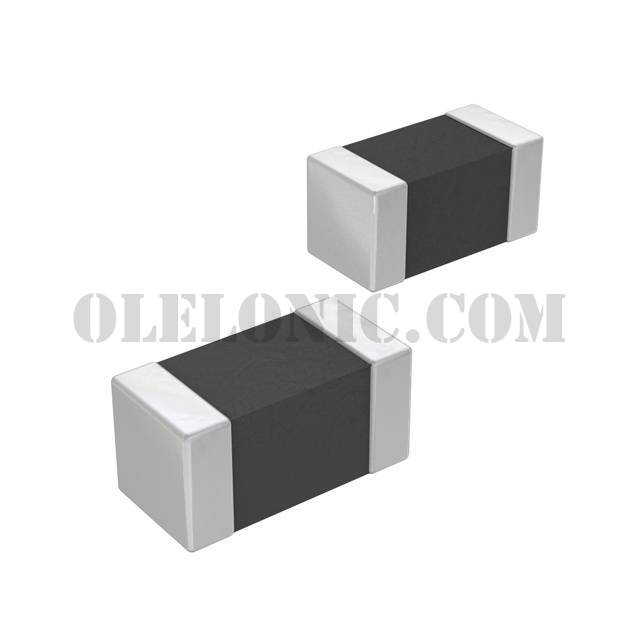

CM100505-10NJL

Part NumberCM100505-10NJL

ManufacturerBourns Inc.

DescriptionFIXED IND 10NH 320MA 410 MOHM

DatasheetCM45,16,10 Series Datasheet

Package / Case0402 (1005 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10nH Unshielded Wirewound Inductor 320mA 410mOhm Max 0402 (1005 Metric)

To learn about the specification of CM100505-10NJL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM100505-10NJL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM100505-10NJL.
We are offering CM100505-10NJL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM100505-10NJL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

CM45,16,10 Series Datasheet

Standard Package

10000

Manufacturer

Bourns Inc.

Series

CM100505

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Alumina

Inductance

10nH

Tolerance

±5%

Current Rating (Amps)

320mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

410mOhm Max

Q @ Freq

8 @ 100MHz

Frequency - Self Resonant

2.8GHz

Ratings

Operating Temperature

-40°C ~ 100°C

Inductance Frequency - Test

100MHz

Mounting Type

Surface Mount

Package / Case

0402 (1005 Metric)

Supplier Device Package

0402 (1005 Metric)

Size / Dimension

0.039" L x 0.020" W (1.00mm x 0.50mm)

Height - Seated (Max)

0.024" (0.60mm)

Base Part Number
