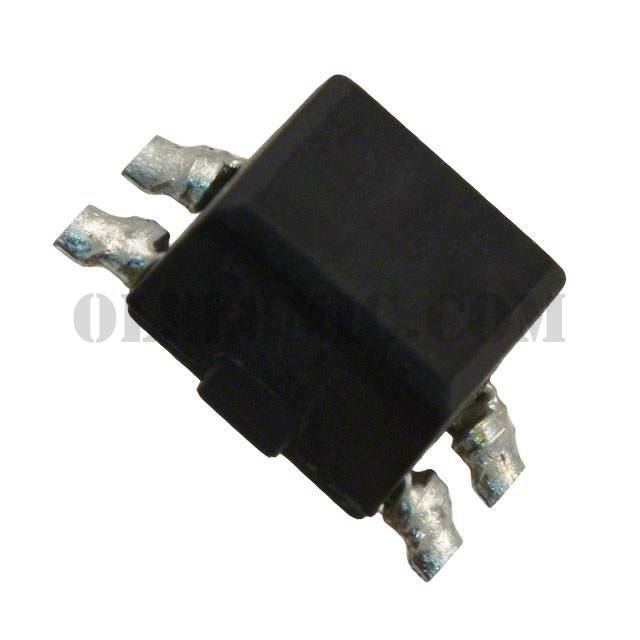

CM04RC07T

Part NumberCM04RC07T

ManufacturerTaiyo Yuden

DescriptionCMC 2.5A 2LN 500 OHM SMD

DatasheetCM04RC07T View all Specification

Package / CaseHorizontal, 4 Gull Wing

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 500 Ohms @ 160MHz 2.5A DCR 60mOhm

To learn about the specification of CM04RC07T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM04RC07T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM04RC07T.
We are offering CM04RC07T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM04RC07T - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CM04RC07T View all Specification

Standard Package

Manufacturer

Taiyo Yuden

Series

CM04

Packaging

Cut Tape (CT)

Part Status

Obsolete

Filter Type

Power, Signal Line

Number of Lines

Impedance @ Frequency

500 Ohms @ 160MHz

Current Rating (Max)

2.5A

DC Resistance (DCR) (Max)

60mOhm

Voltage Rating - DC

50V

Voltage Rating - AC

Operating Temperature

-25°C ~ 105°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.205" L x 0.354" W (5.20mm x 9.00mm)

Height (Max)

0.173" (4.40mm)

Package / Case

Horizontal, 4 Gull Wing
