Categories	Capacitors / Ceramic Capacitors
Datasheet	CKG Series, Automotive MegaCap
Standard Package	1
Manufacturer	TDK Corporation
Series	CKG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.15µF
Tolerance	±5%
Voltage - Rated	250V
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	Low ESL
Ratings	-
Applications	SMPS Filtering, Boardflex Sensitive
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	SMD, J-Lead
Size / Dimension	0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.138" (3.50mm)
Lead Spacing	-
Lead Style	J-Lead

CKG57KC0G2E154J335JJ	TDK Corporation, 0.15µF ±5% 250V Ceramic Capacitor C0G, NP0 SMD, J-Lead, CKG	View
CKG57NC0G2J144K500JH	TDK Corporation, 0.14µF ±10% 630V Ceramic Capacitor C0G, NP0 Stacked SMD, 2 J-Lead, CKG	View
CKG45KC0G2E683J290JH	TDK Corporation, 0.068µF ±5% 250V Ceramic Capacitor C0G, NP0 SMD, J-Lead, CKG	View
CKG57KC0G2J683J335JJ	TDK Corporation, 0.068µF ±5% 630V Ceramic Capacitor C0G, NP0 SMD, J-Lead, CKG	View
CKG57NC0G2E304J500JJ	TDK Corporation, 0.3µF ±5% 250V Ceramic Capacitor C0G, NP0 Stacked SMD, 2 J-Lead, CKG	View
CKG45KC0G2J333J290JJ	TDK Corporation, 0.033µF ±5% 630V Ceramic Capacitor C0G, NP0 SMD, J-Lead, CKG	View
CKG57NC0G2E304J500JJ	TDK Corporation, 0.3µF ±5% 250V Ceramic Capacitor C0G, NP0 Stacked SMD, 2 J-Lead, CKG	View
CKG57KC0G2J683J335JJ	TDK Corporation, 0.068µF ±5% 630V Ceramic Capacitor C0G, NP0 SMD, J-Lead, CKG	View
CKG57KC0G2J683J335JH	TDK Corporation, 0.068µF ±5% 630V Ceramic Capacitor C0G, NP0 SMD, J-Lead, CKG	View
CKG57NC0G2J144K500JH	TDK Corporation, 0.14µF ±10% 630V Ceramic Capacitor C0G, NP0 Stacked SMD, 2 J-Lead, CKG	View
CKG57KC0G2E154J335JH	TDK Corporation, 0.15µF ±5% 250V Ceramic Capacitor C0G, NP0 SMD, J-Lead, CKG	View
CKG57NC0G2E304J500JH	TDK Corporation, 0.3µF ±5% 250V Ceramic Capacitor C0G, NP0 Stacked SMD, 2 J-Lead, CKG	View

CKG57KC0G2E154J335JJ

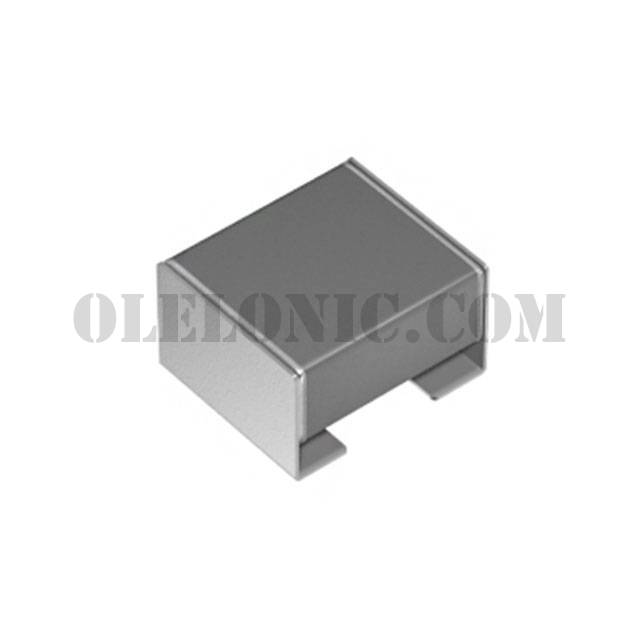

Part NumberCKG57KC0G2E154J335JJ
