Categories	Capacitors / Ceramic Capacitors
Datasheet	CKG Series, Commercial, MegaCap
Standard Package	1000
Manufacturer	TDK Corporation
Series	MEGACAP, CKG
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	100V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	Low ESL (Stacked)
Ratings	-
Applications	SMPS Filtering, Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC

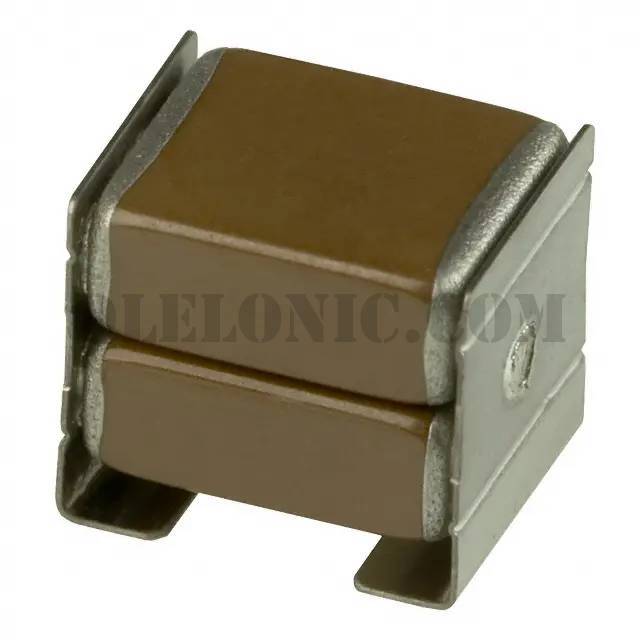

Package / Case	Stacked SMD, 2 J-Lead
Size / Dimension	0.197" L x 0.138" W (5.00mm x 3.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.217" (5.50mm)
Lead Spacing	-
Lead Style	J-Lead
