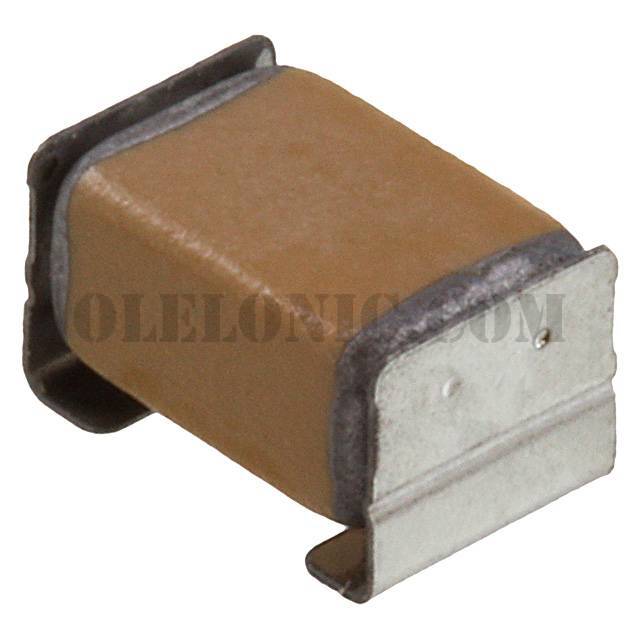

Categories	Capacitors / Ceramic Capacitors
Datasheet	CKG Series, Commercial, MegaCap
Standard Package	1
Manufacturer	TDK Corporation
Series	MEGACAP, CKG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.47µF
Tolerance	±20%
Voltage - Rated	450V
Temperature Coefficient	X7T
Operating Temperature	-55°C ~ 125°C
Features	Low ESL
Ratings	-
Applications	SMPS Filtering, Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	Nonstandard SMD
Size / Dimension	0.197" L x 0.138" W (5.00mm x 3.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.118" (3.00mm)
Lead Spacing	-
Lead Style	-
