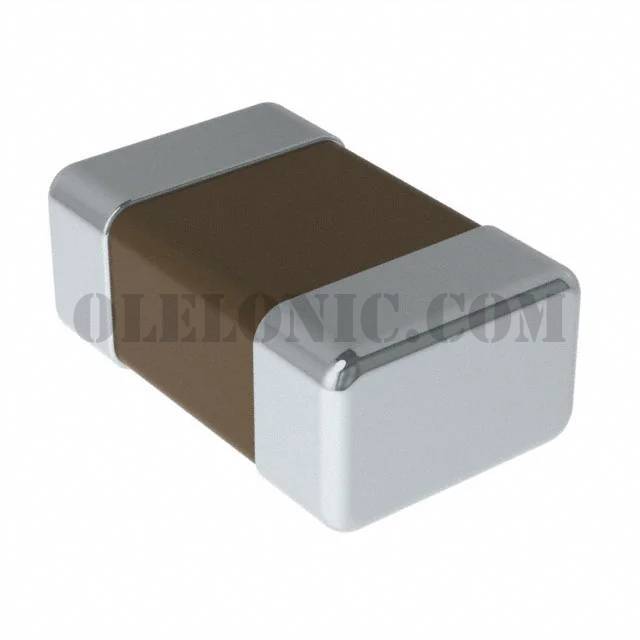

CIGT201208EH1R0MNE

Part NumberCIGT201208EH1R0MNE

To learn about the specification of CIGT201208EH1R0MNE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CIGT201208EH1R0MNE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CIGT201208EH1R0MNE.
We are offering CIGT201208EH1R0MNE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CIGT201208EH1R0MNE Spec
Standard Package	1
Manufacturer	Samsung Electro-Mechanics
Series	CIGT
Packaging	Cut Tape (CT)
Part Status	Active
Type	Thin Film
Material - Core	Metal Composite
Inductance	1µH
Tolerance	±20%
Current Rating (Amps)	3.1A
Current - Saturation	3.2A
Shielding	Unshielded
DC Resistance (DCR)	55mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.031" (0.80mm)
