Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Datasheet	CGH40045
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	GaN
Packaging	Tray
Part Status	Not For New Designs
Transistor Type	HEMT
Frequency	0Hz ~ 4GHz
Gain	14dB
Voltage - Test	28V
Current Rating (Amps)	14A
Noise Figure	-
Current - Test	400mA
Power - Output	55W
Voltage - Rated	84V
Package / Case	440193
Supplier Device Package	440193
Base Part Number	CGH40*

MRF6S20010GNR1	NXP USA Inc., RF Mosfet LDMOS 28V 130mA 2.17GHz 15.5dB 10W TO-270-2 GULL,	View
MRFX600HR5	NXP USA Inc., RF Mosfet LDMOS (Dual) 65V 100mA 1.8MHz ~ 400MHz 26.4dB 600W NI-780-4,	View
BLP7G10S-160PY	Ampleon USA Inc., RF Mosfet LDMOS (Dual) 28V 100mA 600MHz ~ 960MHz 19.4dB 160W 4-HSOPF,	View
AFV10700HSR5	NXP USA Inc., RF Mosfet LDMOS (Dual) 50V 100mA 1.03GHz ~ 1.09GHz 19.2dB 770W NI-780S-4L,	View
BLF2425M9LS140U	Ampleon USA Inc., RF Mosfet SOT502B,	View
BLF8G22LS-270GV,12	Ampleon USA Inc., RF Mosfet LDMOS 28V 2.4A 2.11GHz ~ 2.17GHz 17.3dB 80W CDFM6,	View
MRFE6VP61K25HR5	NXP USA Inc., RF Mosfet LDMOS (Dual) 50V 100mA 230MHz 24dB 1250W NI-1230,	View
PD57018-E	STMicroelectronics, RF Mosfet LDMOS 28V 100mA 945MHz 16.5dB 18W 10-PowerSO,	View
BLS9G2735LS-50U	Ampleon USA Inc., RF Mosfet LDMOS 2.7GHz ~ 3.5GHz 12dB 50W SOT1135B,	View
BLC9G27XS-380AVTZ	Ampleon USA Inc., RF Mosfet LDMOS 30V 600mA 2.496GHz ~ 2.69GHz 15.5dB 380W SOT-1258-7,	View
PD57018TR-E	STMicroelectronics, RF Mosfet LDMOS 28V 100mA 945MHz 16.5dB 18W PowerSO-10RF (Formed Lead),	View
MHT1008NT1	NXP USA Inc., RF Mosfet LDMOS 2.4GHz ~ 2.5GHz 18.6dB 12.5W PLD-1.5W,	View

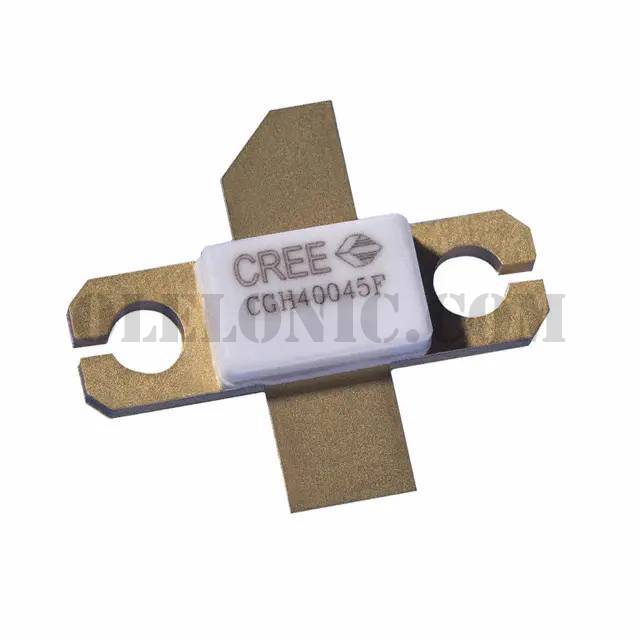

CGH40045F

Part NumberCGH40045F
