Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Datasheet	CGH40025
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	GaN
Packaging	Tray
Part Status	Not For New Designs
Transistor Type	HEMT
Frequency	0Hz ~ 6GHz
Gain	13dB
Voltage - Test	28V
Current Rating (Amps)	7A
Noise Figure	-
Current - Test	250mA
Power - Output	30W
Voltage - Rated	84V
Package / Case	440166
Supplier Device Package	440166
Base Part Number	CGH40*

BLL6H0514L-130,112	Ampleon USA Inc., RF Mosfet LDMOS 50V 50mA 1.2GHz ~ 1.4GHz 17dB 130W CDFM2,	View
CGH31240F	Cree/Wolfspeed, RF Mosfet HEMT 28V 1A 2.7GHz ~ 3.1GHz 12dB 250W 440201, GaN	View
PTVA104501EH-V1-R0	Cree/Wolfspeed, RF Mosfet LDMOS 50V 200mA 960MHz ~ 1.215GHz 17.5dB 450W H-33288-2,	View
MRFX035HR5	NXP USA Inc., RF Mosfet LDMOS 65V 15mA 1.8MHz ~ 512MHz 24.8dB 35W NI-360H-2SB,	View
MMRF1019NR4	NXP USA Inc., RF Mosfet LDMOS 50V 10mA 1.09GHz 25dB 10W PLD-1.5,	View
AFV10700HR5	NXP USA Inc., RF Mosfet LDMOS (Dual) 50V 100mA 1.03GHz ~ 1.09GHz 19.2dB 770W NI-780-4,	View
BLM8G0710S-15PBGY	Ampleon USA Inc., RF Mosfet LDMOS (Dual) 28V 15mA 957.5MHz 36.1dB 1.5W 16-HSOP,	View
BLP10H603AZ	Ampleon USA Inc., RF Mosfet LDMOS 50V 15mA 860MHz 22.8dB 2.5W 12-HVSON (6x4),	View
BLP35M805Z	Ampleon USA Inc., RF Mosfet LDMOS 28V 55mA 2.14GHz 18dB 750mW 16-HVSON (6x4),	View
PD55003TR-E	STMicroelectronics, RF Mosfet LDMOS 12.5V 50mA 500MHz 17dB 3W 10-PowerSO,	View
MMRF1310HR5	NXP USA Inc., RF Mosfet LDMOS (Dual) 50V 100mA 230MHz 26.5dB 300W NI-780-4,	View
BLM7G22S-60PBY	Ampleon USA Inc., RF Mosfet LDMOS (Dual) 28V 75mA 2.14GHz 31.5dB 1.6W 16-HSOPF,	View

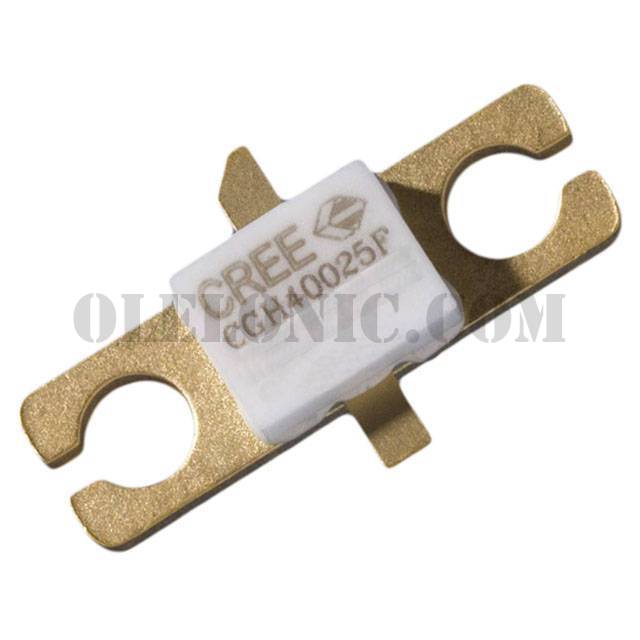

CGH40025F
