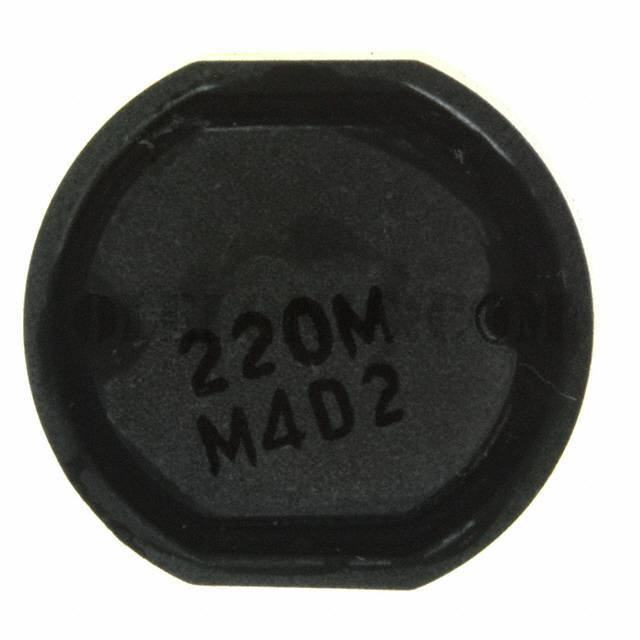

CDR125-220MC

Part NumberCDR125-220MC

ManufacturerSumida America Components Inc.

DescriptionFIXED IND 22UH 2.2A 70 MOHM SMD

DatasheetCDR125 Power Inductor

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Inductor 2.2A 70mOhm Max Nonstandard

To learn about the specification of CDR125-220MC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDR125-220MC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDR125-220MC.
We are offering CDR125-220MC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CDR125-220MC - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

CDR125 Power Inductor

Standard Package

500

Manufacturer

Sumida America Components Inc.

Series

CDR125

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Material - Core

Inductance

22µH

Tolerance

-15%, +20%

Current Rating (Amps)

2.2A

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

70mOhm Max

Q @ Freq

Frequency - Self Resonant

15.2MHz

Ratings

Operating Temperature

-25°C ~ 70°C

Inductance Frequency - Test

2.52MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.496" L x 0.457" W (12.60mm x 11.60mm)

Height - Seated (Max)

0.232" (5.90mm)
