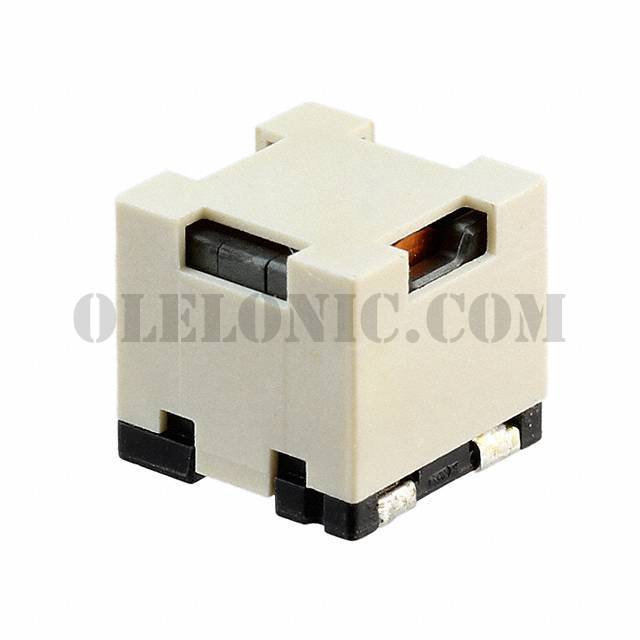

CDEPI106NP-220-S

Part NumberCDEPI106NP-220-S

ManufacturerSumida America Components Inc.

DescriptionINDUCT ARRAY 2 COIL 11UH SMD

DatasheetCDEPI106

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 44µH Inductance - Connected in Series 11µH Inductance - Connected in Parallel 11.5mOhm DC Resistance (DCR) - Parallel 16A Nonstandard

To learn about the specification of CDEPI106NP-220-S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDEPI106NP-220-S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDEPI106NP-220-S.
We are offering CDEPI106NP-220-S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CDEPI106NP-220-S - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

CDEPI106

Standard Package

250

Manufacturer

Sumida America Components Inc.

Series

CDEPI106

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

11µH

Inductance - Connected In Series

44µH

Tolerance

Current Rating - Parallel

16A

Current Rating - Series

Current Saturation - Parallel

4.4A

Current Saturation - Series

2.2A

DC Resistance (DCR) - Parallel

11.5mOhm

DC Resistance (DCR) - Series

46mOhm

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 105°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.433" L x 0.433" W (11.00mm x 11.00mm)

Height

0.413" (10.50mm)
