Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CDBZ5T30100-HF
Standard Package	3000
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	850mV @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount

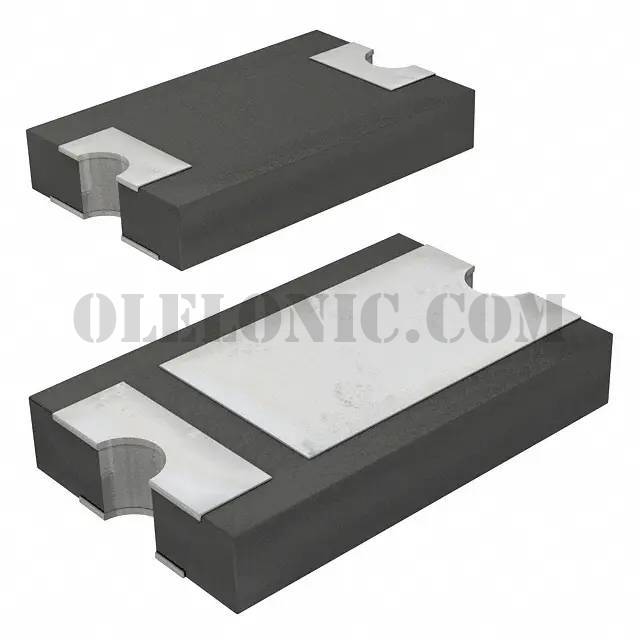

Package / Case	Z5-T
Supplier Device Package	SMC (Z5-T)
Operating Temperature - Junction	-55°C ~ 150°C
