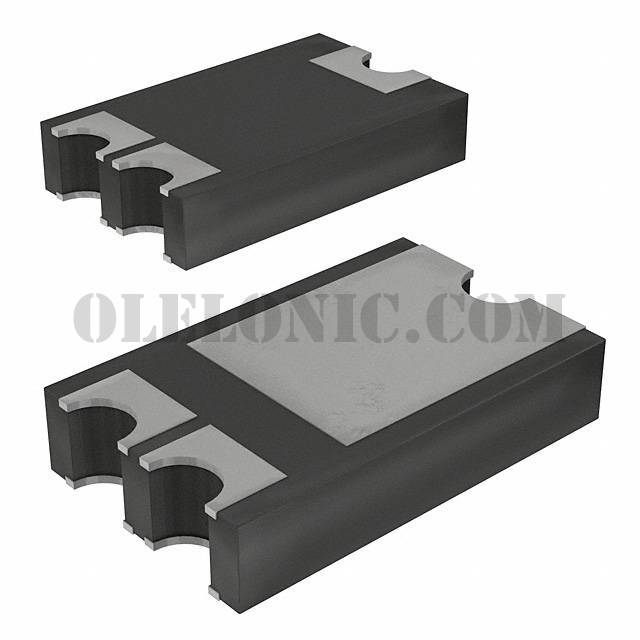

CDBZ310200H-HF


CDBZ310200H-HF

Part NumberCDBZ310200H-HF

Manufacturer

Description

Datasheet

Package / CaseTO-277, 3-PowerDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CDBZ310200H-HF - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerComchip Technology
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io)10A
Voltage - Forward (Vf) (Max) @ If820mV @ 10A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr100µA @ 200V
Capacitance @ Vr, F-
Mounting TypeSurface Mount
Package / CaseTO-277, 3-PowerDFN
Supplier Device PackageTO-277 (Z3)
Operating Temperature - Junction-55°C ~ 150°C
